Series A is used for small and medium runs, mostly
for labels. These models offer a cutting size up to

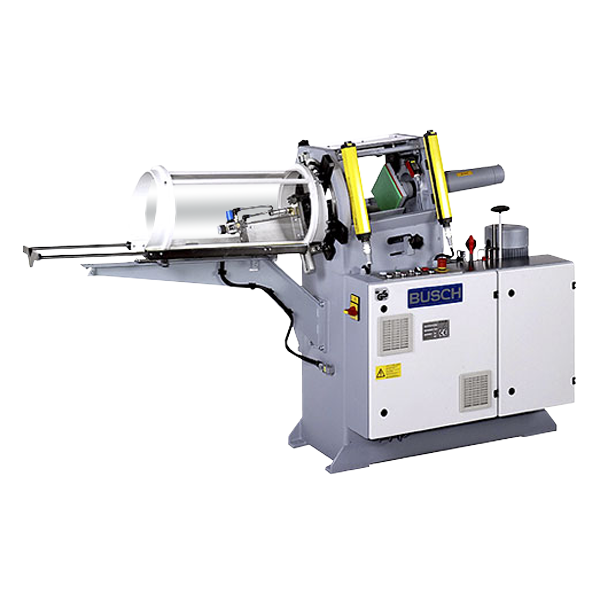

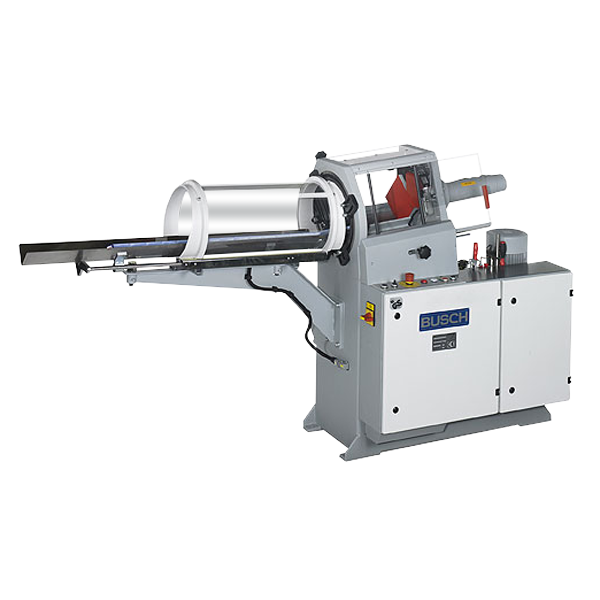

180 x 180 mm. Once the material (square-cut sheets) is inserted and the protective plexiglass door is closed, the cutting stroke is activated – on model A by closing the protective door manually, on model A+P a push-button control closes the door pneumatically. On model AL the cutting stroke starts when the electronic safety light barrier is activated. Standard equipment includes 5 adjustable clamping arms and waste slitters with holders.
Counter-pressure is recommended where tight tolerances are required or when die-cutting plastic material (PP or PE foil) to counteract stretching or movement of the material. It is also useful when die-cutting large-size labels of difficult material, for 4-sided punching of folded sheets or when die-cutting tempered and varnished aluminium foil.
- Cutting size up to 180 x 180mm
- For small and medium runs
- Delivery tray
- Counter-pressure GD-1
|MODEL ||A |
|A+P ||AL |
|Max. cutting size (mm) ||180 x 180 ||180 x 180 ||180 x 180 |
|Min. cutting size (mm) ||17 x 17 ||17 x 17 ||17 x 17 |
|Min. cutting size w. counter-pressure (mm) ||30 x 30 ||30 x 30 ||30 x 30 |
|Max. diam. for circular products (mm) ||180 ||180 ||180 |
|Max. stack height (mm) * ||200 ||200 ||200 |
|Die-cutting pressure (kg) ||2500 ||2500 ||2500 |
|Die-cutting strokes/min ||11 ||13 ||15 |
|Machine output (sheets/h) ** ||660000 ||780000 ||900000 |
|Dimensions WxDxH (mm) ||2550 x 770 x 1370 *** ||2550 x 770 x 1370 *** ||2550 x 770 x 1370 *** |
|Weight (kg) ||570 ||575 ||575 |
|Warranty (yrs) ||1 ||1 ||1 |
* Height of cutting die: 60 mm.
** Inserting 1.000 sheets/80gsm. Max. achievable output. Die-cutting with counter-pressure reduces the output approx. by half.
*** Dimensions for machine with standard equipped delivery tray. Width with counter-pressure: 2260 mm.
|MODEL ||GD-A |
|Compressed air req. (nl/min) ||12 |
|Adjustable counter-pressure (bar) ||0-8 (250kg) |
|Dimensions WxDxH (mm) ||315 x 60 x 325 |
|Weight (kg) ||10 |
For more information, see attachments below.
