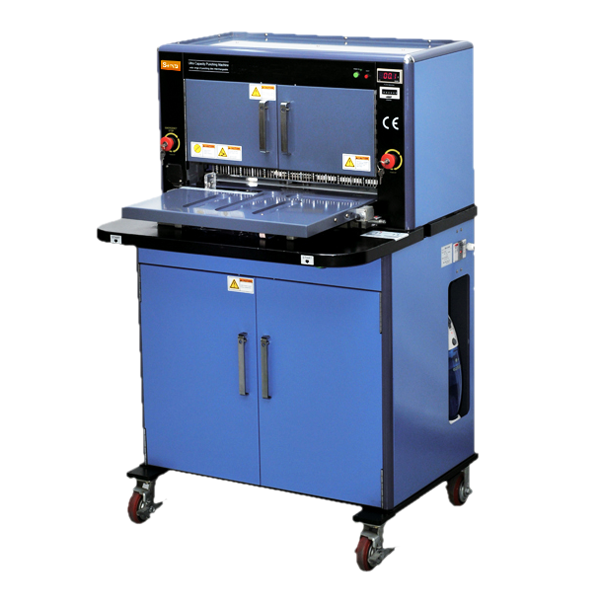

Serva Ultra Puncher 200E
Description
An extremely powerful punching machine aimed at large scale production for all kinds of spirals. Punch up to 190 sheets at once and 550 mm wide. Machine is approx. 8 times faster than a regular machine.
- Large punching capacity, up to 190 sheets (80 g/m)
- Punches up to 550 mm
- One punching die tool set included
- Adjustable margins
- Quick change of punching tools
- Tools with built-in calendar punching is avaliable
- Specifications
| Model: | 200E |
|---|---|
| Punching Operation | Electric/Foot Pedal |
| Available Punching Dies (qty) | +10 |
| Max. Punching Capacity (80 gsm sheets) | 190 |
| Max. Punching Length (mm) | 550 |
| Max. Output (sheets/h) | 100.000 |
| Net Weight (kg) | 450 |
| Dimensions WxDxH (mm) | 805x810x1320 |
| Power | 3-ph/1500W |
