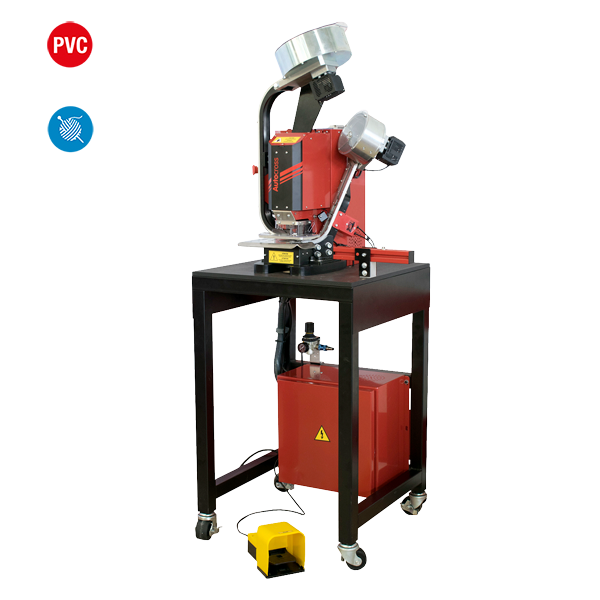

PlastGrommet AutoCross
Description
The perfect eyeletting machine for mid-size users. Handles a wide range of materials like PVC banners, flags, fabrics, corrugated plastic, clear foils, etc. Automatically feeds eyelet and washer, punches and sets the eyelet - all in one go.
- For 8 or 12 mm clear plastic eyelets or 12 mm steel/brass nickel plated eyelets
- MultiPress punches and sets more than 50 eyelets per minute
- Adjustable cutting pressure and eyelet closing pressure, guarantees perfect settings even on light fabrics
- Laser pointer for accurate setting.
- Powerful engine to cut through hard materials
- For all features see attachments
- Specifications
| MODEL | AutoCross |
|---|---|
| Eyelet (types) | Ø8 mm clear plastic Ø12 mm clear plastic Ø12 mm steel nickel plated Ø12 mm brass nickel plated |
| Max. material thickness (mm) | 10 |
| Foot pedal | yes |
| Dimensions WxDxH (mm) | 620 x 620 x 179 |
| Net weight (kg) | 165 |
| Power supply | 230 V / 1Ph |
Reservation for image deviations, changes and factual errors in specifications, data sheets and videos.
