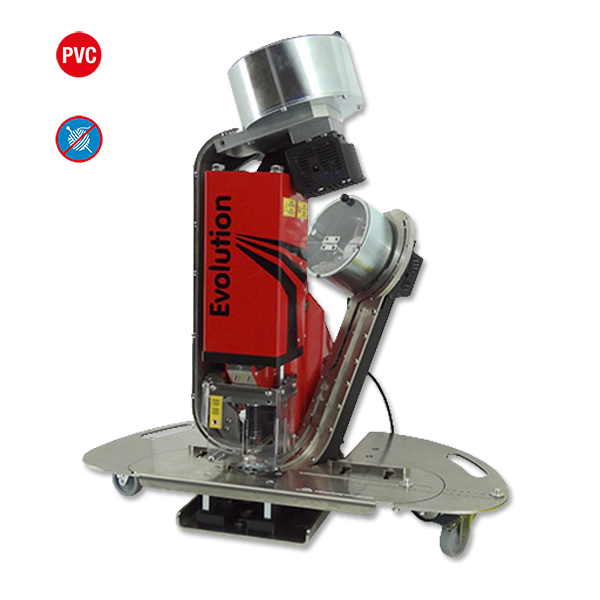

PlastGrommet Evolution
Description
Automatic eyeletting machine för banner production. Fast and reliable machine that feeds eyelets and washers, punches and sets the eyelet automatically and in one go (not recommended for textiles, as it might create wrinkles).
- Laser mark for precision and convenient placement of the eyelet
- Available in two versions for Ø12mm and Ø16mm eyelets
- Positioning guides: fixed distance between eyelets and from the edge of the media
- The machine comes with a base plate with lockable casters
- Two variants of work tables available as option (see data sheet below)
- Requires both air- and electrical power. Compressor available as option
- Specifications
| Model: | Evolution |
|---|---|
| Insertion Depth (mm) | 55/80 * |
| Foot Pedal | Yes |
| Air Pressure | 6 bar/87 psi |
| Air requirements (l/cycle) | 7.6 |
| Dimensions WxDxH (mm) | TBA |
| Net Weight (kg) | 58 |
| Power | 1-ph/60W |
* Rigid/soft materials.
Please specify which dimension of eyelets you want in the form below.
Files and media
 | Data sheet |
 | Product video |
