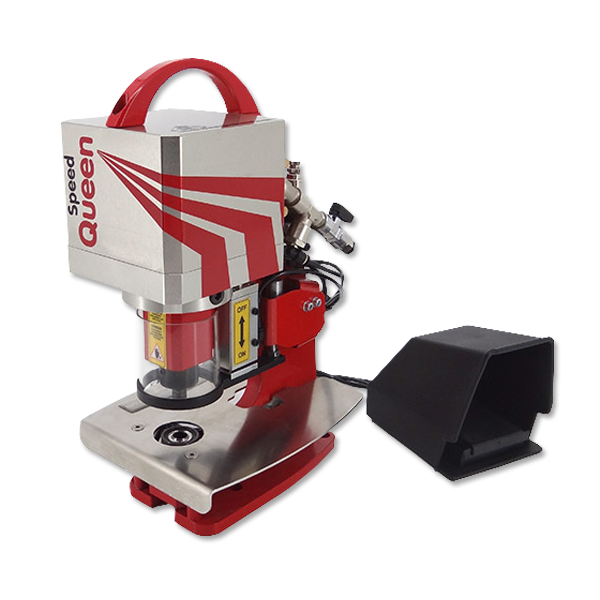

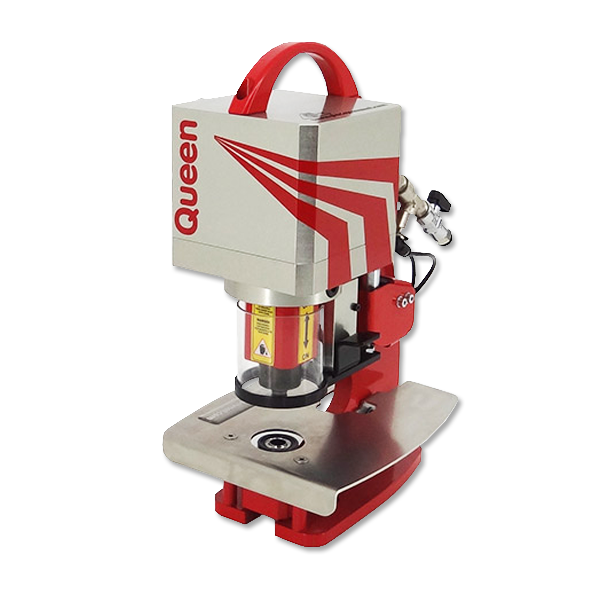

PlastGrommet Queen/Speed Queen
Description
Semiautomatic pneumatic eyeletting machine for eyeletting PVC banners and other soft or rigid materials (not recommended for textiles, as it might create wrinkles). Safety guard at the punching/setting mechanism.
- Punches and sets the eyelet in one maneuver
- Practical work table with eyelet storage available as option
- As option Queen can be fitted with a caster base plate for easier handling when eyeletting on the floor
- Eyelet sizes: 8, 12, 16mm
- Requires compressed air-supply (available as option)
- Specifications
| Model: | Queen | Speed Queen |
|---|---|---|
| Insertion Depth (mm) | 95 | 95 |
| Foot Pedal | - | Yes |
| Work Table | Option | Option |
| Caster base plate | Option | - |
| Air Pressure | 6 bar/87 psi | 6 bar/87 psi |
| Air requirements (l/cycle) | 5.49 | 5.49 |
| Dimensions WxDxH (mm) | 140 x 220 x 362 | 140 x 220 x 362 |
| Net Weight (kg) | 9.2 | 9.2 |
One tool for punching/eyeletting included. Extra tools can be ordered separately. Specify what dimenson(s) you would like in the form below.
Files and media
 | Data sheet: Queen |
| Data sheet: Speed Queen |
