Qupa Electric Puncher D600
Description

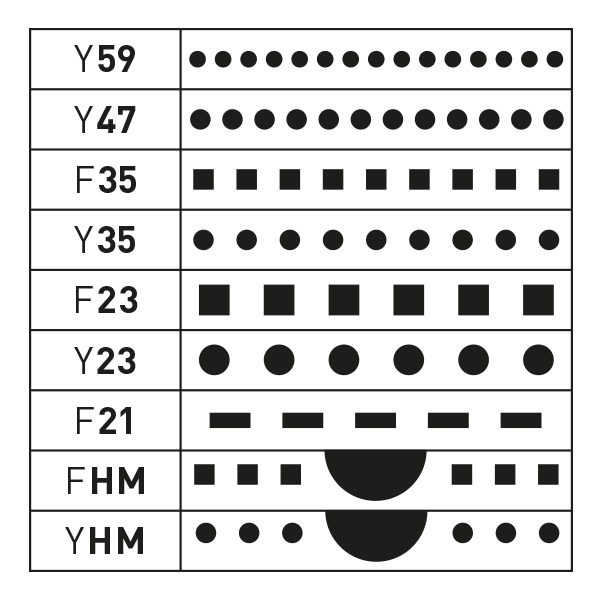

Qupa D600 is a versatile electric punching machine for binding wire, plastic comb or coil. With easily exchangeable cartridges you can punch for plastic comb, coil (5:1 and 4:1) and 3:1 or 2:1 wire (with round or square holes). One die cartridge included in the price (for available punching dies, see Pic. 2).
- Heavy-duty all metal construction
- Great value for money
- Choose from nine different tools for plastic comb, coil and wire
- Easily exchangeable cartridges
- Adjustable margin and paper stop
- Waste drawer
- Foot pedal
- Specs
- Punching Dies
| Model: | D600 |
|---|---|
| Punching | Electric |
| Punching Capacity (sheets) | <25 |
| Sheet Size | A4 |
| Net Weight (kg) | 28 |
| Dimensions WxDxH (mm) | TBA |
| Power | 1-ph/300W |
| Warranty (yrs) | 1 |
| Part.No. | Description | Hole Size (mm) | Pitch (mm) | Dies (qty) |
|---|---|---|---|---|
| DIE-Y59 | 5:1 - Coil - ⚪ | ⌀ 3.25 | 5 | 59 |
| DIE-Y47 | 4:1 - Coil - ⚪ | ⌀ 4 | 6.287 | 47 |
| DIE-F35 | 3:1 - Wire - ☐ | 4 x 4 | 8.46 | 35 |
| DIE-Y35 | 3:1 - Wire - ⚪ | ⌀ 4 | 8.46 | 35 |
| DIE-F23 | 2:1 - Wire - ☐ | 6 x 6 | 12.7 | 23 |
| DIE-Y23 | 2:1 - Wire - ⚪ | ⌀ 6 | 12.7 | 23 |
| DIE-F21 | Plastic Comb - ▭ | 3 x 8 | 14.25 | 21 |
| DIE-FHM | 3:1 - Wire - ☐ Thumb-cut | 4 x 4 | 8.46 | 16-1-16 |
| DIE-YHM | 3:1 - Wire - ⚪ Thumb-cut | ⌀ 4 | 8.46 | 16-1-16 |
