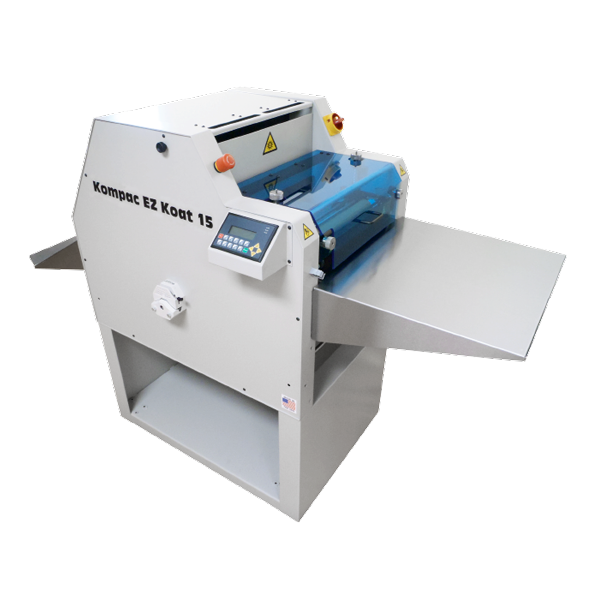

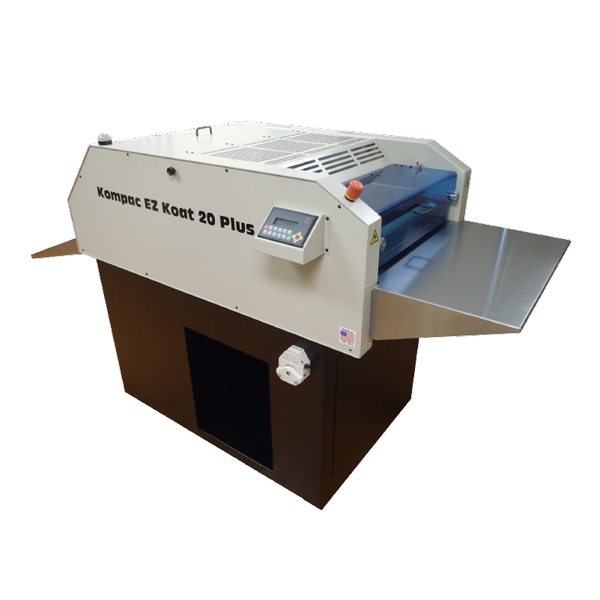

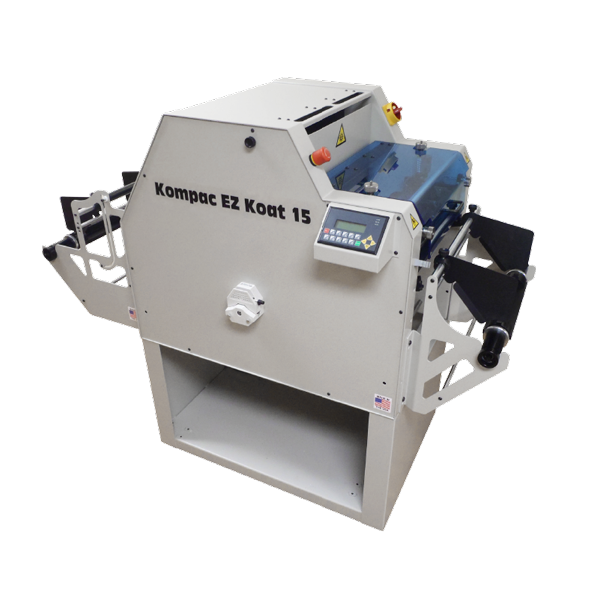

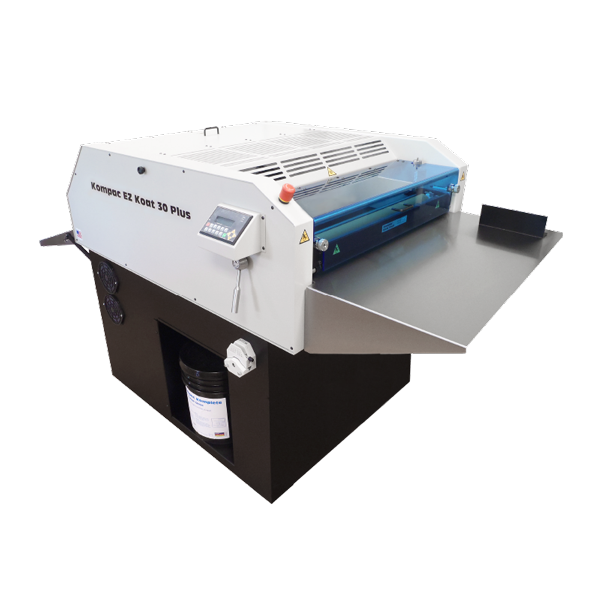

Kompac EZ Koat
Description
The Kompac EZ Koat product line is a small footprint UV and aqueous flood coating and curing system capable of sheet fed or web applications running inline or offline.
- Easy to set up and operate
- Coating changes and cleanups in two minutes or less
- Variable speed and UV intensity
- Specifications
| MODEL | 15 | Web 15 | 20 Plus | 30 Plus |
|---|---|---|---|---|
| Paper Weights (gsm) | 150-600 | 150-600 | 150-600 | 150-600 |
| Max. Output (m/min) | 24 | 24 | 32 | 40 |
| Max. Coating Width (mm) | 368 | 368 | 520 | 775 |
| Dimensions WxDxH (mm) | 1900 x 740 x 1270 | 1900 x 740 x 1270 | 1950 x 800 x 1220 | 2900 x 1200 x 1300 |
| Net Weight (kg) | 181 | 181 | 275 | 455 |
| Power | 1-ph | 1-ph | 1-ph | 3-ph |
| Warranty (yrs) | 1 | 1 | 1 | 1 |
For more information, see attachments below.
