Horizon cutting knife
Description
High quality cutting knives from Hagedorn for Horizon cutting machines. Six different kind of materials. Protective knife box included. NOTE! For knives missing in the list, select "Other model" and specify model/dimensions in the form.
- Range
- Materials
| MODEL | DIMENSIONS (MM) | HOLES |
|---|---|---|
| HT 30 | 490x75x9,5 | 6/M8 + 3/M6 |
| APC 58 / M-18 | 740x110x7,92 | 8/M10 |
| PC 61 | 765x110x7,94 | 10/M10 |
| PC 64 / H-1 | 735x75x7,98 | 5/M10 |
| HT 70 | 400x75x9,5 | 6/M8 |
| C920M | 1080x127x12,7 | 18/M12 |
| HT 100 - SM L | 425x125x9,5 | |
| HT 100 - SM R | 425x125x9,5 | |
| HT 101 - VM | 491x125x9,5 | |
| FC 10 - VMU | 370x35x10/9 | 3/11 - 2/12 +4 countersunk longitudinal |
| FC 10 - VMO | 370x87 / 53x10 | 3/11 - 2/12 +4 countersunk longitudinal |
| HTS 30 - SMO L | 270x70 / 60x10 | |
| HTS 30 - SMO R | 270x70 / 60x10 | |
| HTS 30 - SMU L | 300x22x10 | |
| HTS 30 - SMU R | 300x22x10 | |
| HTS 30 - VMU | 405x22x10 | |
| HTS 30 - VMO | 405x85 / 65 / 55x10 |
| Standard | High quality Swedish steel. |
| HSS | Contains 18% tungsten. Up to four times longer life than standard. For most models the most common knife. |
| TCT | Tungsten carbide tipped knives with ultra fine grain quality. Up to ten times longer life than standard. |
| LONGLIFE | Made out of super fine tungsten carbide. Up to twenty times longer life than standard. |
| GENESIS | Made of ultra fine grain carbide. Cuts even harder materials than paper and cardboard. Up to 40 times longer life than standard. |
| VITECH | This knife reaches new dimensions and is manufactured by a patented method. Can handle more materials than any other knife, and up to 60 times longer life than standard. |

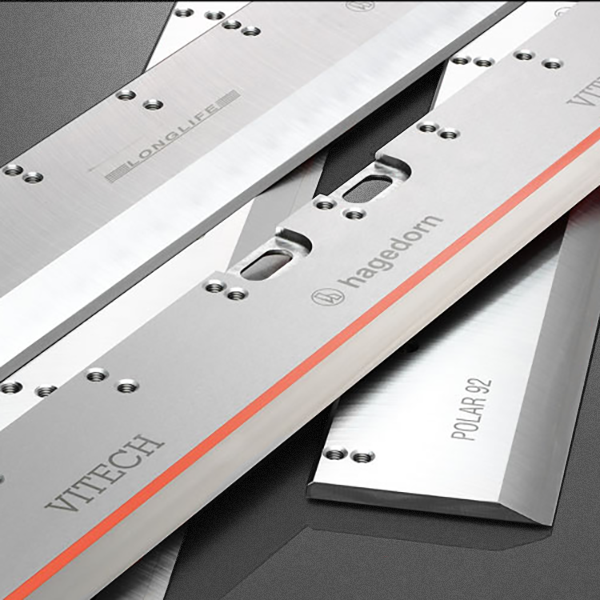

The product image does not necessarily match the product.
For current price and delivery time use the form below or send an e-mail to info@servagroup.se
