Paper drill bit - Ø13 mm shaft
Description
Paper drill bits of the highest quality for paper and a variety of other materials. This type has a shaft with 13 mm in outer diameter and fits to e.g. Multidriller.
- Paper drill bits of the highest quality for paper, cardboard, foil, plastic, leather etc.

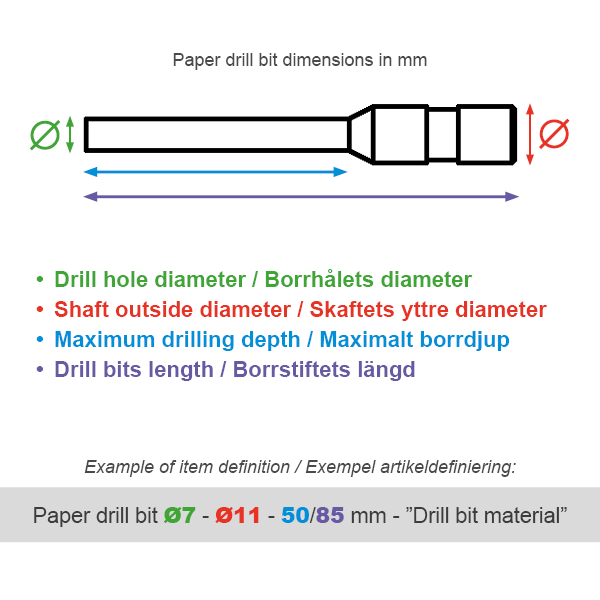

- For a description of dimensions, see Figure 2.
- These drill bits are in stock for immediate delivery. For other lengths and dimensions with a slightly longer delivery time, see related article below.
- For drill bits with a different shaft dimension, see separate articles.
HIGH SPEED - Standard drill bits in hardened steel. Best suited for uncoated paper. Also works for coated paper and cardboard with shortened lifetime.
TUNGSTEN CARBIDE - A hard and very durable material with a considerably longer lifetime than hardened steel. Works for most materials and the best choice when drilling in e.g. uncoated paper, cardboard, foil and leather.
TEFLON - Hardened steel drill with Teflon coating. Works best for plastic materials, rubber and many textiles. Also advantageous for materials that contain e.g. glue or adhesive which, unlike other materials, does not stick as easily to the Teflon coating.
- In stock
- On request
- Clearance sale
| HOLE DIAMETER (mm) | DRILLING DEPTH (mm) | DRILL BIT LENGTH (mm) |
|---|---|---|
| 3.0 | 32 | 85 |
| 4.0 | 42 | 85 |
| 5.0 | 52 | 85 |
| 5.5 | 52 | 85 |
| 6.0 | 52 | 85 |
| 6.5 | 52 | 85 |
| 7.0 | 52 | 85 |
| HOLE DIAMETER (mm) | DRILLING DEPTH (mm) | DRILL BIT LENGTH (mm) |
|---|---|---|
| 3.5 | 32 | 85 |
| 4.5 | 42 | 85 |
| 5.0 | 65 | 100 |
| 5.5 | 65 | 100 |
| 6.0 | 65 | 100 |
| 6.5 | 65 | 100 |
| 7.0 | 65 | 100 |
| 8.0, 8.5, 9.0, 9.5, 10.0 | 52 | 85 |
| 8.0, 8.5, 9.0, 9.5, 10.0 | 65 | 100 |
| Please contact Serva for price and delivery time here | ||
| HOLE DIAMETER (mm) | DRILLING DEPTH (mm) | DRILL BIT LENGTH (mm) |
|---|---|---|
| No products at the moment | ||

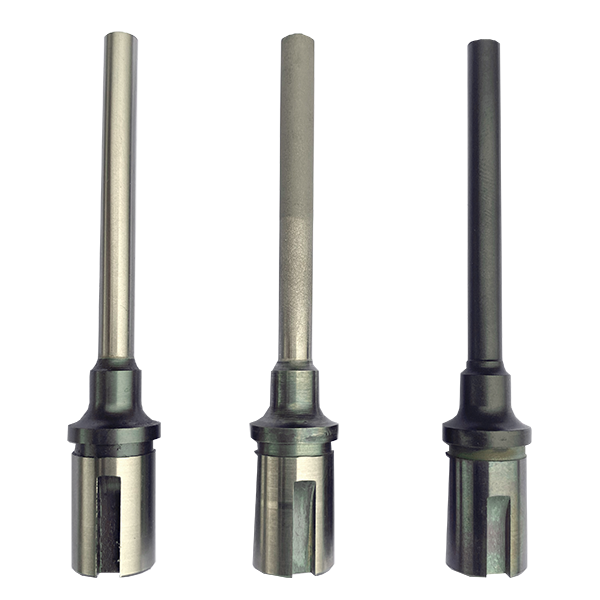

The image does not necessarily correspond with the product.
