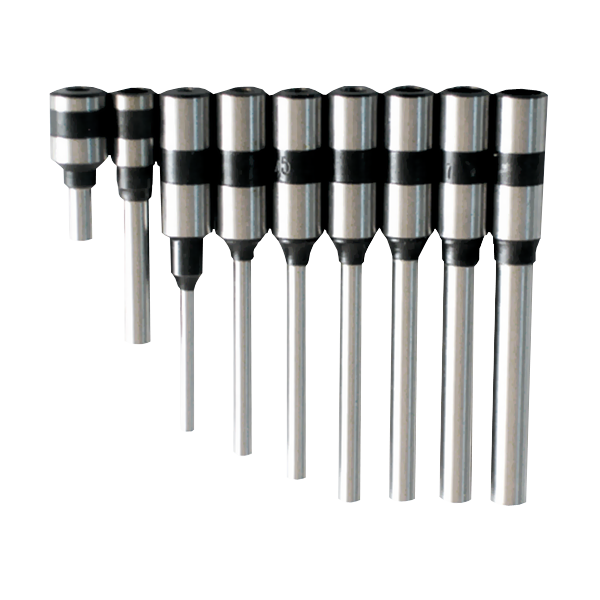

Paper drill bit - Ø18 mm shaft
Description
Paper drill bits of the highest quality for paper and a variety of other materials. This type has a shaft with 18 mm in outer diameter and fits to eg. SPC machines with LS Taper Head Type and Serva Driller 100 E and 300E.
- Paper drill bits of the highest quality for paper, cardboard, foil, plastic, leather etc.

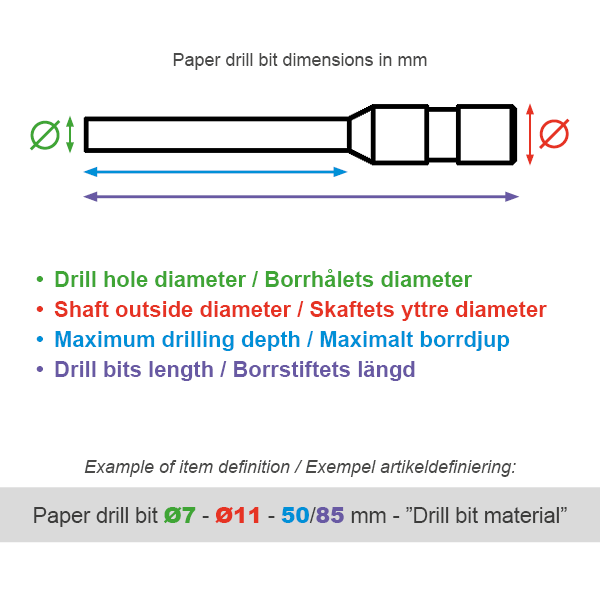

- For a description of dimensions, see Figure 2.
- Paper drills for SPC machines with LS Taper Head Type, FP-lll 60/100 LS, FP-lV 60/100 LS
- Paper drills for Serva Driller 100E and 300E
- For drill bits with a different shaft dimension, see separate articles.
HIGH SPEED - Standard drill bits in hardened steel for paper and cardboard.
TEFLON - Hardened steel drill with Teflon coating. Works best for plastic materials, rubber and many textiles. Also advantageous for materials that contain e.g. glue or adhesive which, unlike other materials, does not stick as easily to the Teflon coating.
| HOLE DIAMETER (mm) | DRILLING DEPTH (mm) | DRILL BIT LENGTH (mm) |
|---|---|---|
| 3 | 40 | 90 |
| 4 | 50 | 90 |
| 5 | 60 | 90 |
| 6 | 60 | 90 |
| 6 | 100 | 130 |
| 7 | 60 | 90 |
| 7 | 100 | 130 |
| 8 | 60 | 90 |
| 8 | 100 | 130 |
| 9 | 60 | 90 |
| 9 | 100 | 130 |
| 10 | 100 | 130 |
| 12 | 100 | 130 |
| 14 | 100 | 130 |
* In case of any backorder, we will contact you for further information.
The image does not necessarily correspond with the product.
€24.93
