Bacciottini Pit Stop DG Line 6500
Description
Automatic perforating/creasing machine with a low pile feeder. Ideal for print on demand when high quality and fast and simple operation is required. The 50x70cm feeding format is adapted to digital print and even book covers (with the 50x85cm extension feeder).
- Easy set up of all creasing and perforating operations
- Mounted on wheels for easy movement
- Max. paper size is 50x70cm (optional 50x85cm)
- 2/1, 3/1, 4/1 perforating kits and standard creasing kit available as option
- Specifications
| Model: | Pit Stop DG Line 6500 |
|---|---|
| Feed | Suction |

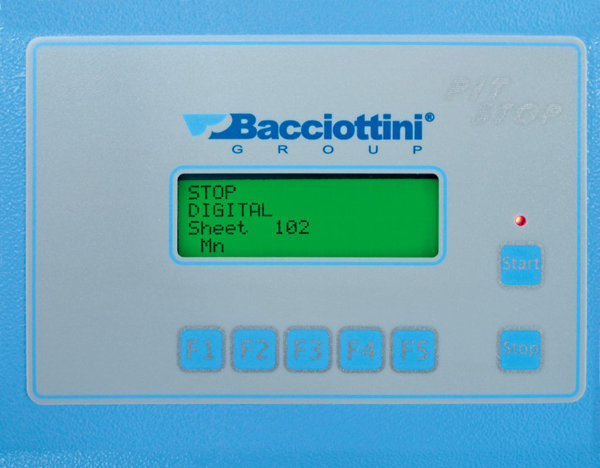

| Control | Control panel, LCD |
| Min. Sheet Size (mm) | 80x100 |
| Max. Sheet Size (mm) | 500x700* |
| Paper Weights (gsm) | 80‐400 |
| Max. Output (A4 sheets, single crease) | 6500 |
| Programs/Steps (storage) | 20/20 |
| Min. Crease Distance (mm) | 0.1 |
| Creasing Heads | 1 |
| Dimensions WxDxH (cm) | 150x75x120 |
| Net Weight (kg) | 180 |
| Power | 1-ph/2 kW |
| Warranty (yrs) | 1 |
* Max. sheet size: 500x850mm with optional extension feeder equipped.
For more information, see attachment(s) below.
Files and media
 | Data sheet |
