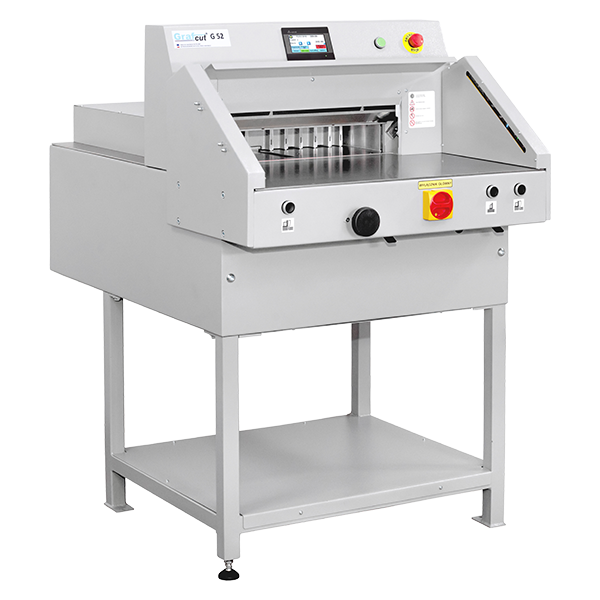

Grafcut G52
Description
Electric cutting machine with performance for the highest requirements. 52 cm cutting width and 8 cm cutting height. PLC control system with 7" color touchscreen, Adjustable clamp pressure from display.
- Designed and manufactured in Europe
- IR light barrier and other safety functions

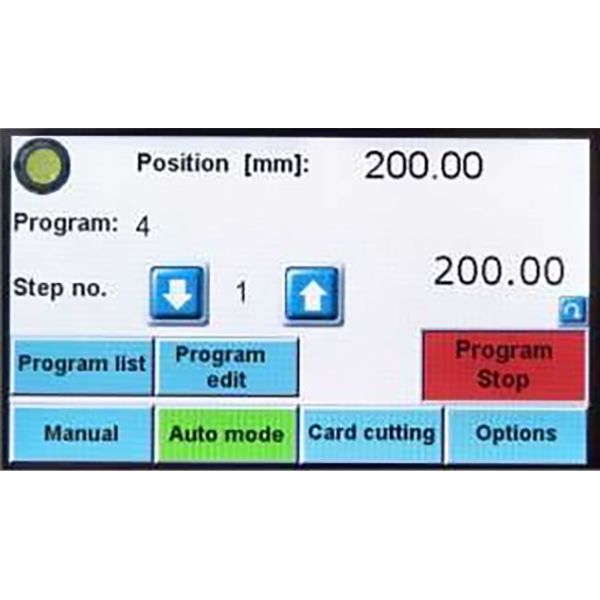

- Easy setting via touch-screen
- PLC control system with lot of functions and more easy settings and diagnostics
- 100 programs with 100 steps each
- Very high precision, accuracy below 0.1mm
- Digital setting of clamp pressure, in steps 0-100
- Electro-mechanical drive for knife, clamp and backguage
- Specification
| MODEL | G52 |
|---|---|
| Control panel | 7" color touch screen |
| Program / steps | 100/100 |
| Cutting width (mm) | 520 |
| Cutting length (mm) Program mode Manual mode |
520 530 |
| Cutting height (mm) | 80 |
| Smallest cut (mm) | 22 |
| Clamp pressure (daN) | 200-1100 |
| Air tables | no |

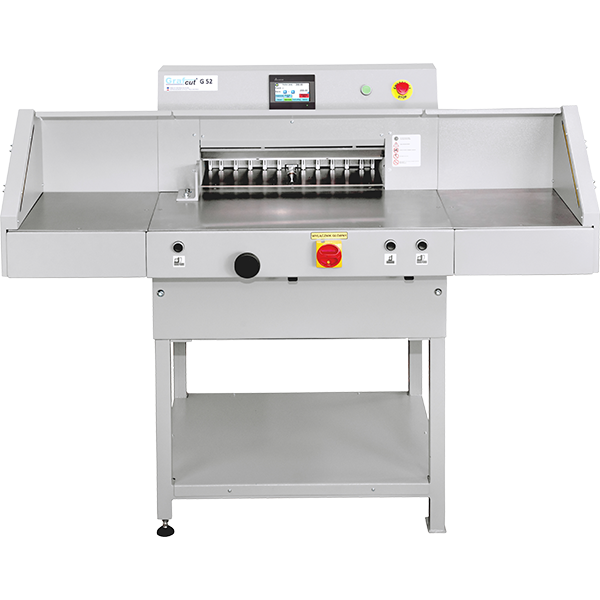

| Side tables | option |
| Foot pedal | no |
| Net weight (kg) | 310 |
| Dimensions without side tables WxLxH (mm) | 833 x 1215 x 1244 |
| Dimensions with side tables WxLxH (mm) | 1533 x 1215 x 1244 |
| Connection and power | 230V / 50 Hz / 2kW |
| Warranty (year) | 1 |
For more information, see attachments
Files and media
 | Data sheet |
 | Grafcut G52 |
| Grafcut G52 knife change |
