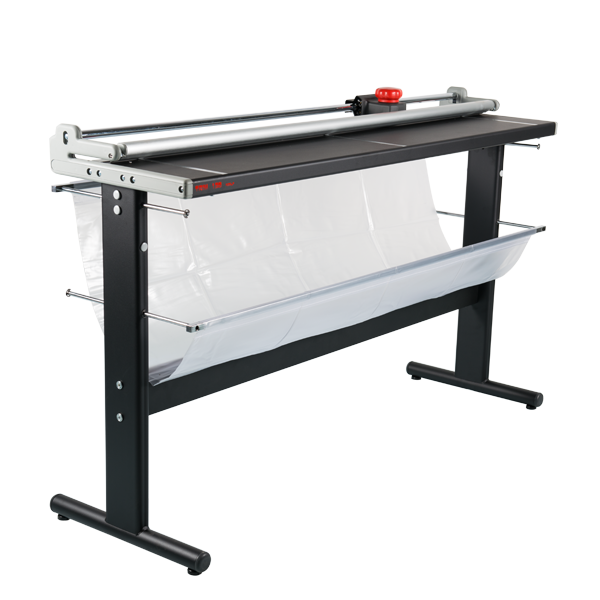

Neolt Manual Trim Plus
Description
Manual rotary trimmer for cutting soft materials up to 1.2 mm thickness. Available in five versions with cutting lengths ranging from 100cm to 250cm.
- Cuts a wide range of materials up to 1.2 mm thickness
- Transparent sheet holder
- Rotating blade in hardened steel and a stainless steel fixed blade
- Stand and Containment bracket for paper waste is included
- LED lamp for cutting area and roll holder available as option
- 100/130/150
- 200/250
| Model: | 100 | 130 | 150 |
|---|---|---|---|
| Cutting width (mm) | 1000 | 1300 | 1500 |
| Cutting thickness (mm) | 1.2 | 1.2 | 1.2 |
| Working height (mm) | 870 | 870 | 870 |
| Stand | Included | Included | Included |
| Containment bracket | Included | Included | Included |
| Roll Holder | Option | Option | Option |
| LED lamp | Option | Option | Option |
| Weight with stand (kg) | 27.3 | 31.2 | 33.7 |
| Dimensions WxDxH (mm) | 1240 x 480 x 980 | 1540 x 480 x 980 | 1740 x 480 x 980 |
| Warranty (yrs) | 1 | 1 | 1 |
| Model: | 200 | 250 |
|---|---|---|
| Cutting width (mm) | 2000 | 2500 |
| Cutting thickness (mm) | 1.2 | 1.2 |
| Working height (mm) | 870 | 870 |
| Stand | Included | Included |
| Containment bracket | Included | Included |
| Roll holder | Option | Option |
| LED lamp | Option | Option |
| Weight incl.stand (kg) | 34.6 | 48 |
| Dimensions WxDxH (mm) | 2240 x 480 x 980 | 2740 x 480 x 980 |
| Warranty (yrs) | 1 | 1 |
For more information, see attachments below.
