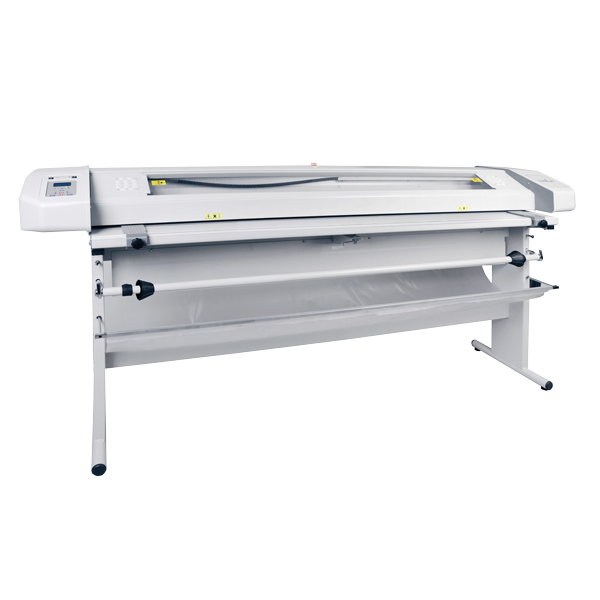

Neolt Textile Trim 165/280/340/520
Description
Electric trimmer for synthetic and natural fabrics. Works with up to 520cm width and 7mm thickness.
- Cutting widths of up to 520cm.
- Self-sharpening rotary blade
- Pneumatic sheet-holder with foot pedal
- Max. carriage speed 0.5 m/sec
- 165/280
- 340/520
| Model: | 165 | 280 |
|---|---|---|
| Max. Cutting Width (mm) | 1650 | 2800 |
| Speed (m/sec) | 0.5 | 0.5 |
| Max. Cutting Thickness (mm) | 7 | 7 |
| Max. Temp. Rotary Blade (°C) | 325 | 325 |
| Dimensions WxDxH (mm) | 2500 x 580 x 1120 | 3660 x 580 x 1120 |
| Power | 1-ph/500W | 1-ph/600W |
| Air Pressure (bar) | 6/7 | 6/7 |
| Net Weight (kg) | 105 | 150 |
| Warranty (yrs) | 1 | 1 |
| Model: | 340 | 520 |
|---|---|---|
| Max. Cutting Width (mm) | 3400 | 5200 |
| Speed (m/sec) | 0.5 | 0.5 |
| Max. Cutting Thickness (mm) | 7 | 7 |
| Max. Temp. Rotary Blade (°C) | 325 | 325 |
| Dimensions WxDxH (mm) | 4210 x 580 x 1120 | 6070 x 580 x 1120 |
| Power | 1-ph/600W | 1-ph/700W |
| Air Pressure (bar) | 6/7 | 6/7 |
| Net Weight (kg) | 200 | 300 |
| Warranty (yrs) | 1 | 1 |
For more information, see attachments below.
