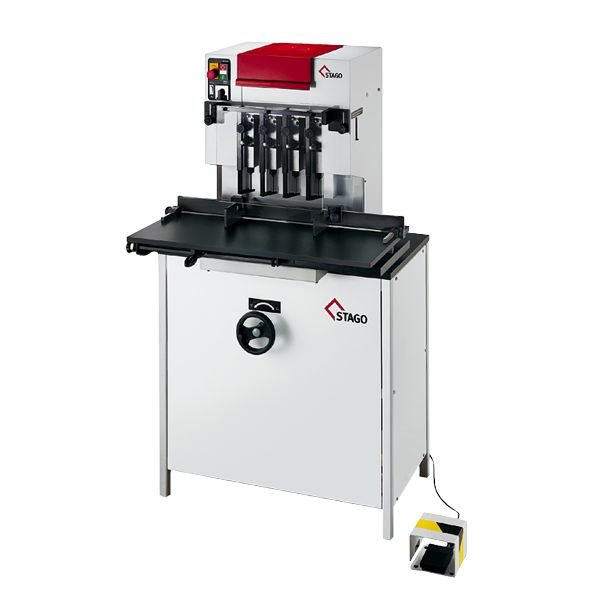

Stago PB 5010
Description
Five-spindle paper drilling machine. High-performance drill spindles, a drill diameter of 2-10 mm, a maximum stack height of up to 60 mm, allows for drilling paper, cardboard, textiles, leather and plastics.
- Various adjustable drilling distance between 40-250mm
- Big support table size 800 x 415mm
- Optional drill cooling and lubrication
- Specifications
| Model: | PB 5010 F | PB 5010 A |
|---|---|---|
| Drilling Spindles | 2-5 | 2-5 |
| Max. Drilling Depth (mm) | 60 | 60 |
| Work Table Size (mm) | 800 x 415 | 800 x 415 |
| Work Table (options) | Fixed (F)/ Sliding (S) | Fixed (F)/ Sliding (S) |
| Adjustable drill distance (mm) | 40-250 | 40-250 |
| Drill diameters (mm) | 2-10 | 2-10 |
| Net Weight (kg) | 110 (F) 120 (S) | 250 (F) 260 (S) |
| Dimensions WxBxH (mm) | 650x700x1550 (F) 750x700x1550 (S) | 910x660x1450 (F) 910x660x1450 (S) |
| Power | 3-ph | 3-ph |
| Warranty (yrs) | 1 | 1 |
For more information, see attachment below.
