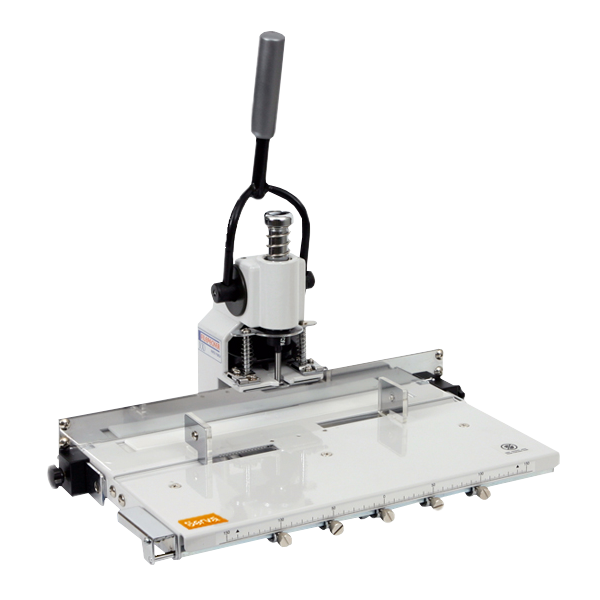

Serva Driller 30M
Description
Manual punching machine with high capacity. Quick and easy change of punching bit Ø3-8 mm or calendar punching Ø20 mm, so-called thumb grip.
- Punching height 30 mm (up to 300 sheets)
- Punching paper, card board and many semi-rigid materials such as plastic, vinyl, leather etc. For some materials, punching bits with teflon coating are recommended.
- Adjustable supports on the sides and inner edge for maximum precision
- Adjustable punching depth from inner edge, 0-30 mm
- Spring loaded metal plate for equalizing pressure when punching
- Movable table with stop function for easy multi punching
- Ø6 mm standard punching bit are included, the others are available as an option
- Ø20 mm punching bit for calendars are available as an option
- One punching pad is included, more are available as an option
- Specifications
| MODEL | 30M |
|---|---|
| Machine type | manual |
| Rotating bits | no |
| Punching heads (qty) | 1 |
| Punching height (mm) | 30 |
| Punching depth from inner edge (mm) | 0-30 |
| Sheet width (mm) | 365 |
| Diameter punching bits (ø mm) | 3-8 |
| Diameter calendar tool (ø mm) | 20 |
| Net weight (kg) | 18 |
| Machine measurment LxDxH (mm) | 288 x 373 x 350 |
| Warranty (year) | 1 |
