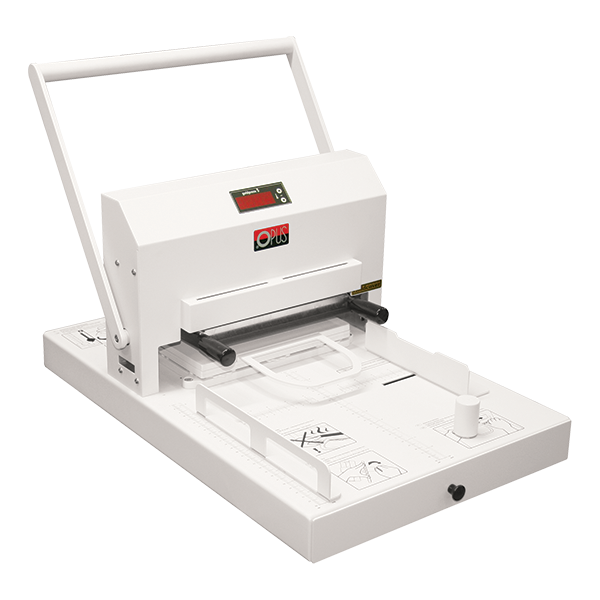

Goldpress 5
Description
Manual hot stamping machine for matrix and fonts with embossing surface of 100x200 mm. Embossing with or without foil for an exclusive effect on printed matter and other accessories.
- Robust construction and easy to operate
- Works on most semi-rigid and heat resistant materials, as leather, plastic, paper etc
- Works on most semi-rigid and heat resistant materials, as leather, plastic, paper etc

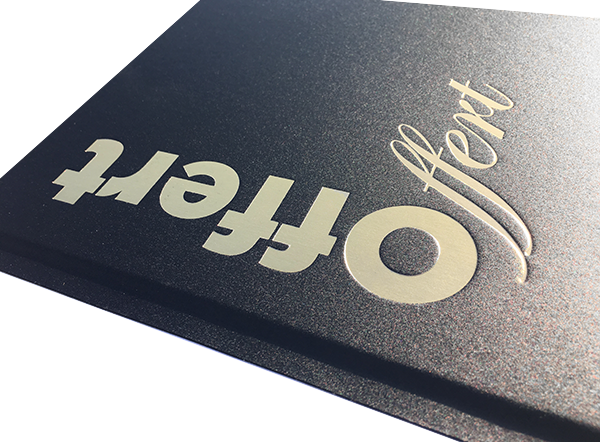

- Perfect result even on textured surfaces (pic. 2)
- Stamp with fonts or matrix, see accessories below

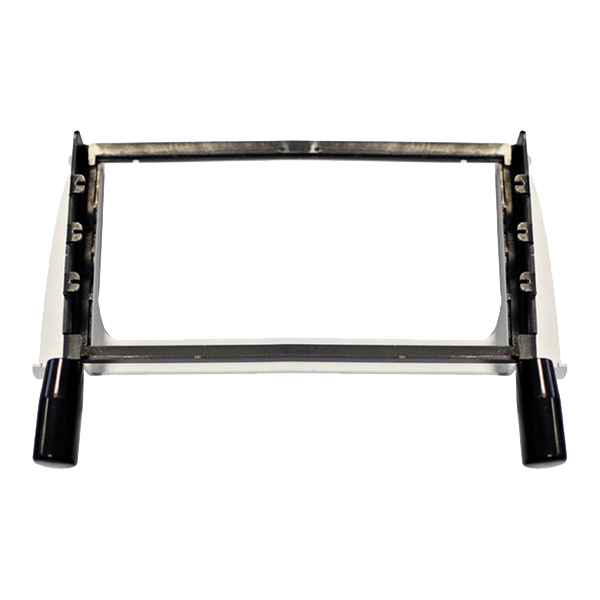

- Master Frame Holder is included machine (pic. 4)
- Foil sheets in a variety of colors, see accessories below

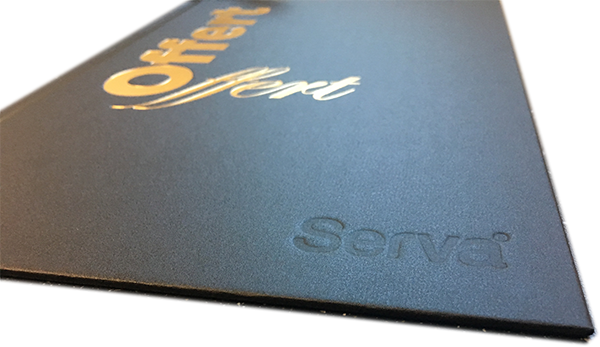

- Can also be used without foil for stylishly embossing (pic. 3) and die cutting (pic. 6)

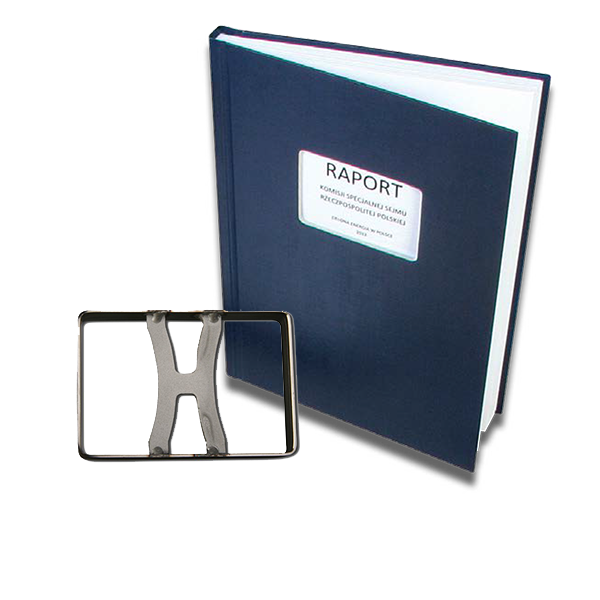

- Can be used with OPUS metal binding to produce exclusive hard cover books
- Specification
| MODEL | GOLDPRESS 5 |
|---|---|
| Operation (type) | manual |
| Temperature setting (ºC) | 20-150 |
| Max. width for cover (mm) | 265 |
| Max. width for cover without side stops (mm) | 305 |
| Heating / embossing surface (mm) | 100x200 |
| Max. pressure (kg) | 2000 |
| Machine dimension LxWxH (mm) | 548x362x280 |
| Connection (type) | 1-phase/600W |
| Weight (kg) | 29 |
| Warranty (year) | 1 |
