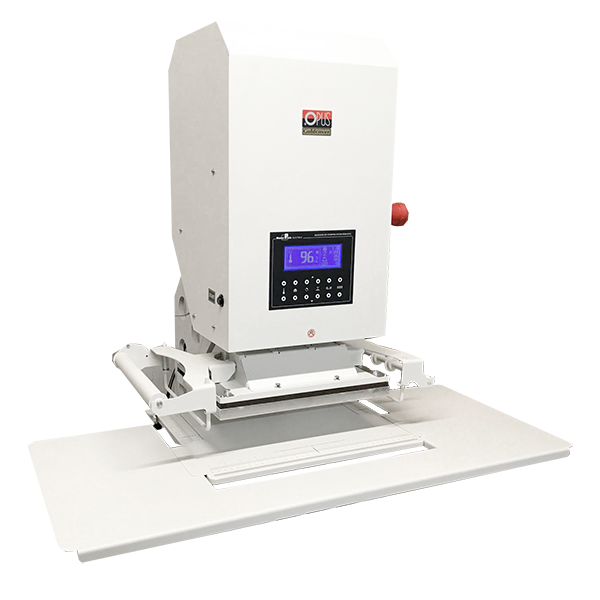

Masterpress EMD / EMD DEEP
Description
Automatic hot stamping machine for matrix and fonts with high performance and extra large embossing surface, 218 x 308 mm. Embossing with or without foil for an exclusive effect on printed matter and other accessories.
- LCD screen with easy adjustment of time, pressure, heat and job storage
- Automatic foil rewinding after stamp

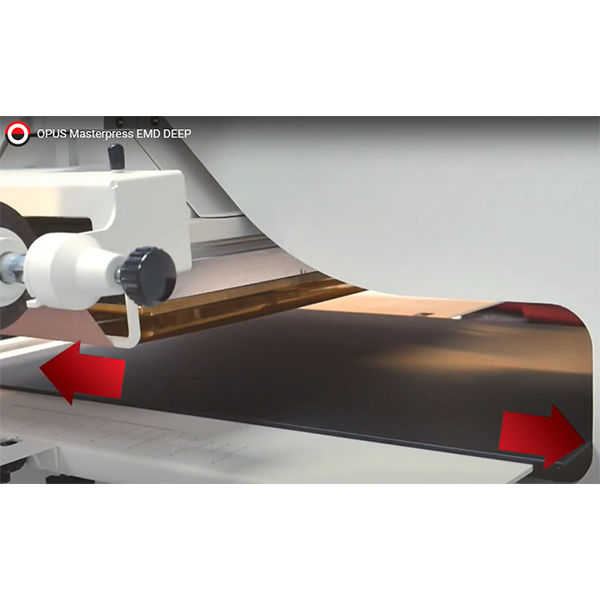

- EMD DEEP with increased heater overhang to work on larger materials (pic. 3)
- Works on most semi-rigid and heat resistant materials, as leather, plastic, paper etc

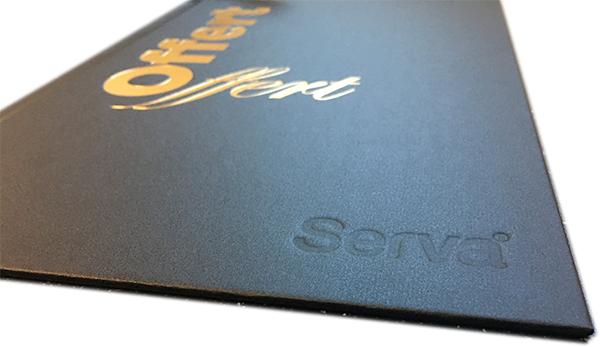

- Perfect result even on textured surfaces (pic. 3)
- Stamp with fonts or matrix, see accessories below

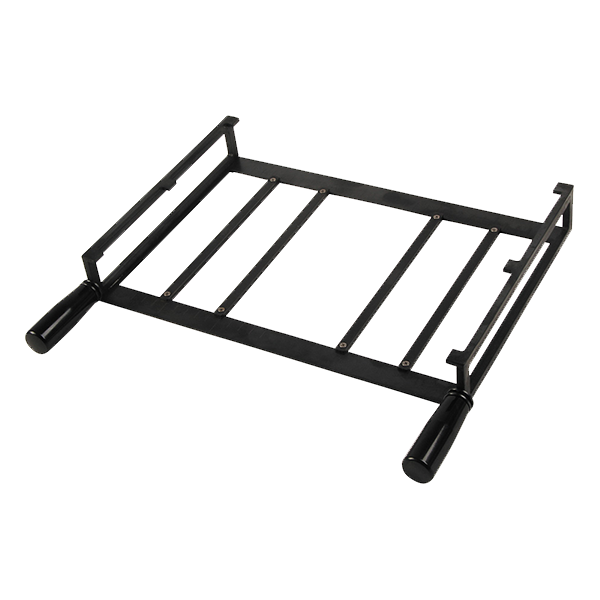

- Master Frame Holder is included machine (pic. 5)

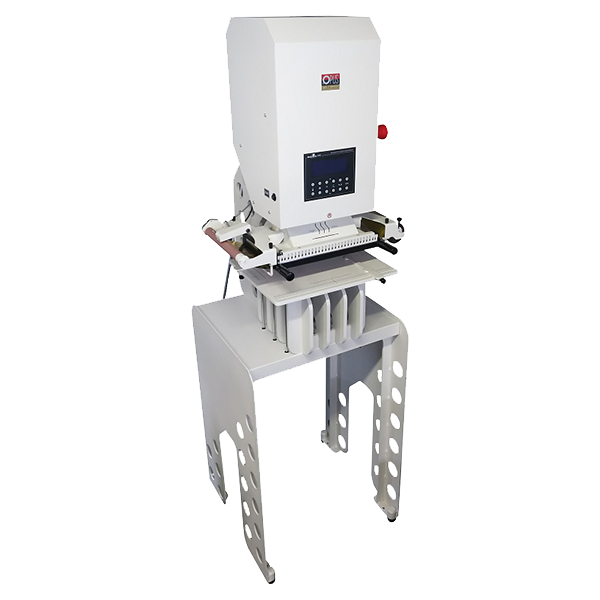

- Stand is included (pic. 2)
- Foil rolls in a variety of colors for embossing, see accessories below
- Can also be used without foil for stylishly embossing (pic. 4) and die cutting (pic. 6)

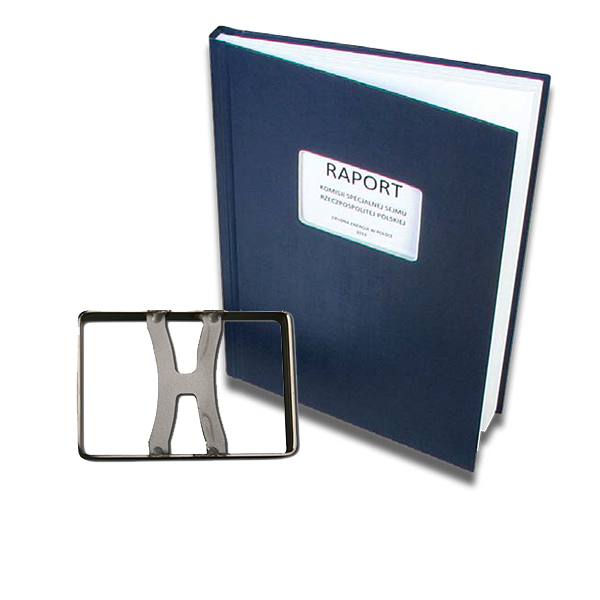

- Can be used with OPUS metal binding to produce exclusive hard cover books
- Specification
| MODEL | EMD | EMD DEEP |
|---|---|---|
| Operation (type) | Automatisk | Automatisk |
| Temperature setting (°C) | 50-190 | 30-190 |
| Max width of cover / material (mm) | unlimited | unlimited |
| Heating / embossing surface (mm) | 218 x 308 | 218 x 308 |
| Max width foil rolls (mm) | 230 | 230 |
| Max. pressure (kg) | 5000 | 5000 |
| Net weight machine (kg) | 138 | 153 |
| Net weight stand (kg) | 30 | 43 |
| Dimensions with stand WxDxH (mm) | 515 x 530 x 1530 | 510 x 795 x 1649 |
| Connection (type) | 1-phase / 220-240V | 1-phase / 220-240V |
| Warranty (year) | 1 | 1 |
