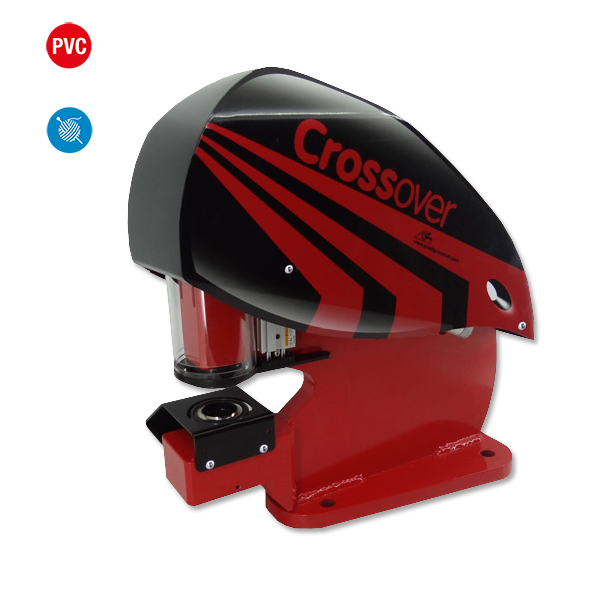

PlastGrommet Crossover
Description
Semi-automatic pneumatic eyeletting machine for eyeletting PVC banners and other soft or rigid materials including textiles. Requires adjustment of the punching settings when switching to/from eyeletting textiles.

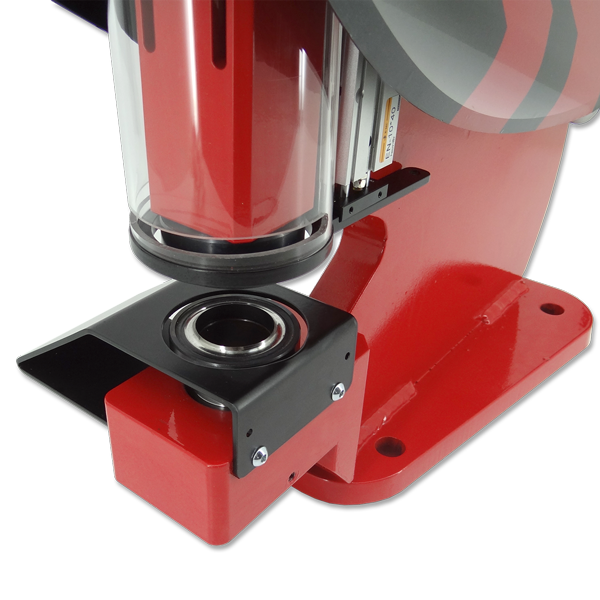

- Punches and sets the eyelet in one maneuver
- Foot pedal and safety guard
- Eyelet sizes: 8, 12, 16, 25, 40mm
- Requires compressed air-supply (available as option)
- Specifications
| Model: | Crossover |
|---|---|
| Insertion Depth (mm) | 112 |
| Foot Pedal | Yes |
| Air Pressure | 6 bar/87 psi |
| Air requirements (l/cycle) | 10.5 |
| Dimensions WxDxH (mm) | 250 x 550 x 540 |
| Net Weight (kg) | 47 |
One tool for punching/eyeletting included. Extra tools can be ordered separately. Specify what dimenson(s) you would like in the form below.
