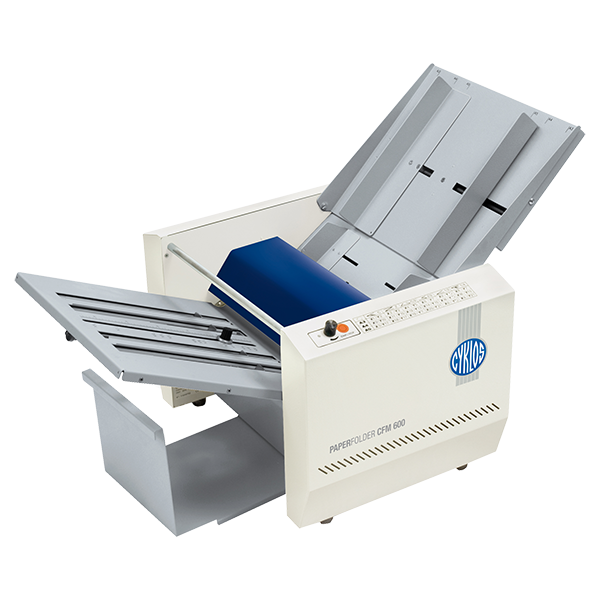

Cyklos Paper Folder CFM 600
Description
Friction fed folding machine for up to A3 format. Two pockets for 6 type of folds. Design for safer feeding of most paper types and a variety of features and adjustments for best result.
- Robust construction and easy operation
- Strongly sloping input table provides safer feeding
- 2 folding pockets with table for easy adjustment of 6 different folding types
- Adjustment for paper thickness
- Sensor for detecting misfeeds
- Speed adjustment control
- Output table for precise stacking
- Specification
| Model: | CFM 600 |
|---|---|
| Feeding (type) | friction |
| Folding pockets | 2 |
| Folding types | 7 |
| Paper thickness (g/m²) | 80-160* |
| Infeed capacity (80 g/m² sheet) | 300* |
| Max sheet size | A3 |
| Speed (A4-sheet/min) | 70-120 |
| Net weight (kg) | 23 |
| Machine dimensions LxWxH (mm) | 770x445x490 |
| Connection (type) | 1-phase/50W |
| Warranty (year) | 1 |
* May vary depending on paper type, surface, etc.
Files and media
 | Data sheet |
 | Product video |
| User manual |
