Bacciottini Butterfly Easy 2 Fold
Description

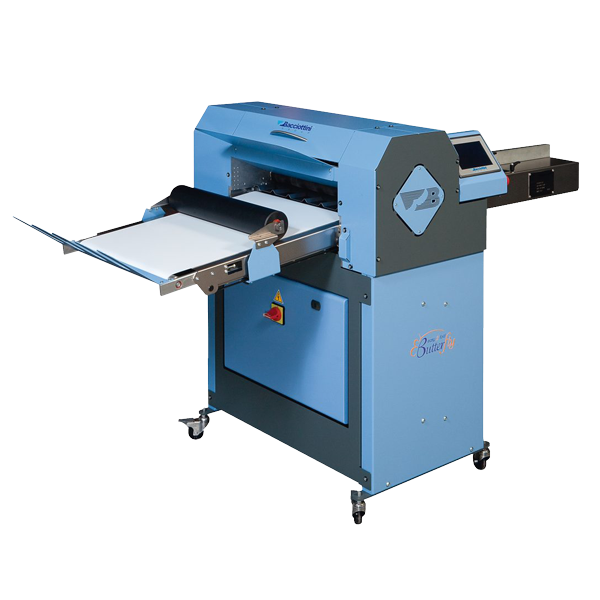

Butterfly Easy 2 Fold is a folding machine that can be positioned in line with any Pit Stop creasing machine. The two parallel folds are performed by special knife units that allow sheets up to 450gsm to be folded without distortion to the sheet even if folding against the grain. The pulsed delivery belt with pressing roller ensures reliable and consistent shingling of the finished product.
- Easy setup with many pre-programmed folding layouts
- Mounted on wheels for easy movement

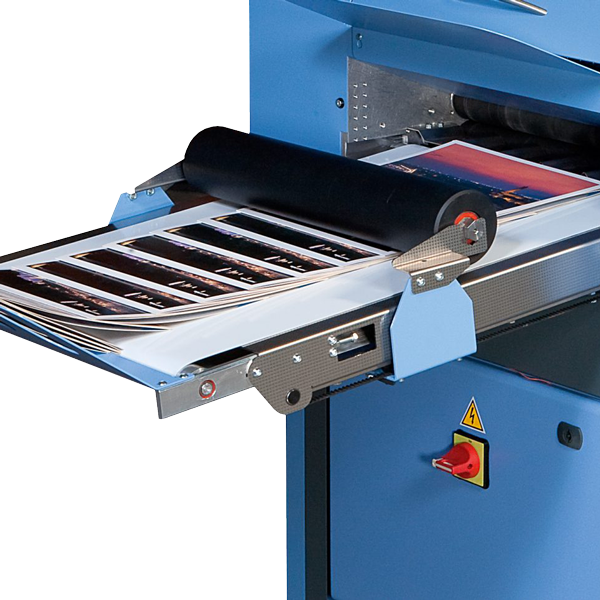

- The finished product is delivered on a pulsed delivery belt
- Machine output of up to 11,000 sheets per hour
- Specifications
| Model: | Butterfly Easy 2 Fold |
|---|---|
| Feed | Suction |

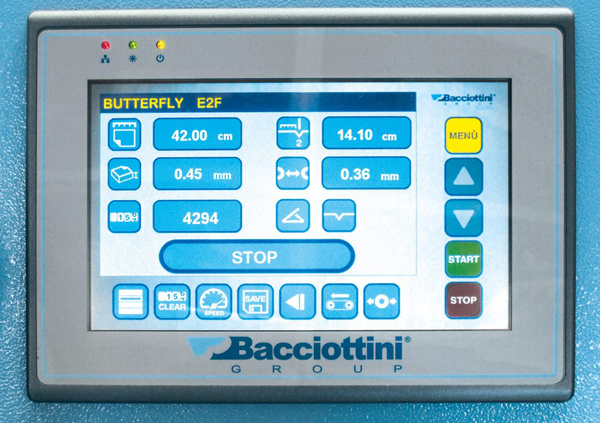

| Control | Touch screen |
| Min. Sheet Size (mm) | 80x150 |
| Max. Sheet Size (mm) | 500x850 |
| Paper Weights (gsm) | 80‐450 |
| Max. Output (A4 sheets, single fold) | 11,000 |
| Dimensions WxDxH (cm) | 198x91x120 |
| Net Weight (kg) | 226 |
| Power | 1-ph/2 kW |
| Warranty (yrs) | 1 |
For more information, see attachment(s) below.

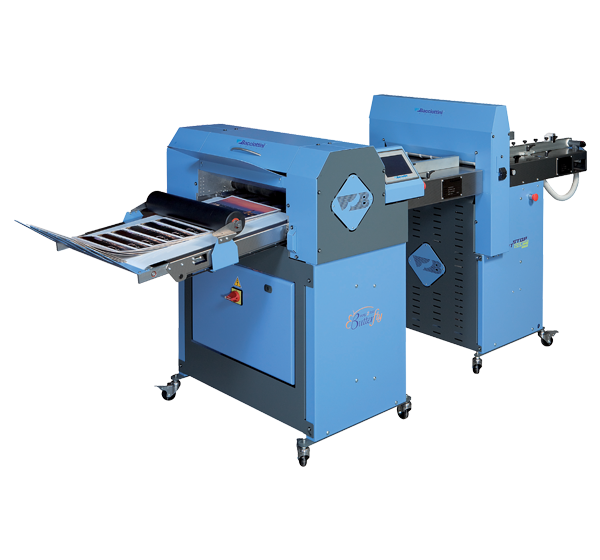

Butterfly Easy 2 Fold is generally sold with the FM High Speed creasing machine. If you would like a quote for another creasing machine or just for the folding unit, please specify in the form below.
Files and media
 | Data sheet |
 | Bacciottini Butterfly Easy 2 Fold |
