Bacciottini Oxo Multiskill
Description

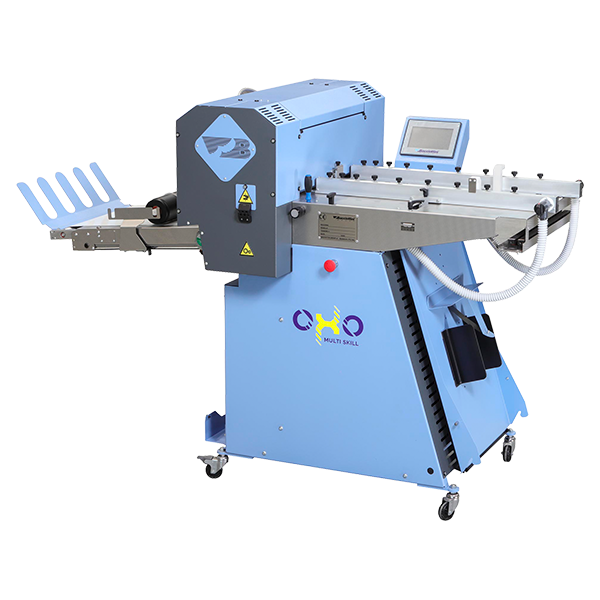

Oxo Multiskill is a combined crease and folding machine from Italian Bacciottini. A further development of the successful Pit Stop series and Butterfly E2F characterized by Bacciottini's unique knife folding technology. Oxo is the optimal machine for creasing and folding with perfect results both on small and large formats, lower and higher gram weights.
- Creasing and folding in combination or individually. Perforating as optional
- Folds up to 400 g/m² and creases up to 600 g/m²
- Format up to 50x70 cm (as optional 50x100 cm)
- Crease and folds up to 9.000 sheets/h
- Can handle many different media types, eg. double laminated sheets
- Mounted on wheels for easy movement
- Specification
| Model | Oxo Multiskill |
|---|---|
| Feed | Suction |

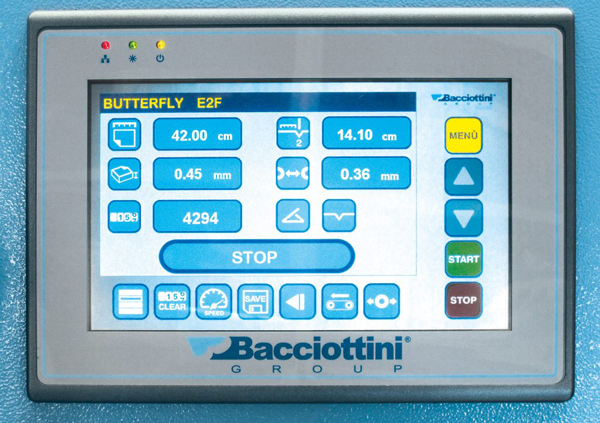

| Control | Touch screen |
| Min. sheet size folding (mm) | 80x150 |
| Min. sheet size creasing (mm) | 80x100 |
| Max. sheet size (mm) | 500x700 |
| Max. sheet size optional (mm) | 500x1000 |
| Paper weights creasing (g/m²) | 80‐600 |
| Paper weights folding (g/m²) | 80‐400 |
| Max. output (sheet/h) | 9.000 |
| Dimensions WxDxH (cm) | 200x95x132 |
| Net weight (kg) | 320 |
| Connection | 1-ph/230V/3kW alt. 3-ph/400V/4kW |
For all features see attachments
Reservation for image deviations, changes and factual errors in specifications, data sheets and videos.
