Baum 20
Description

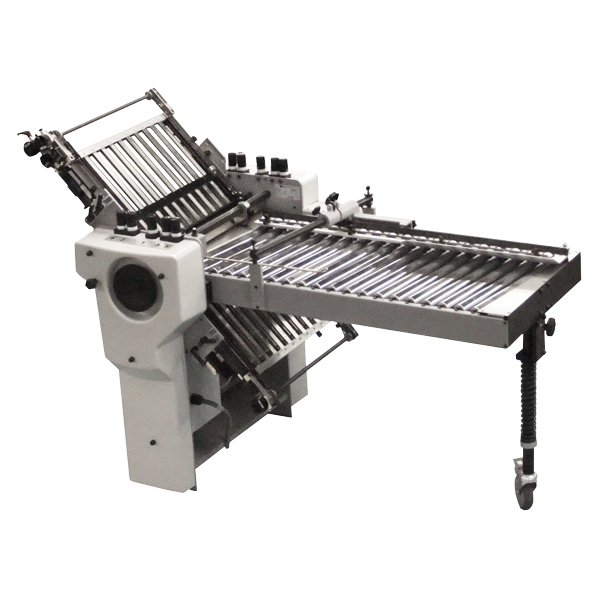

Baum 20 are extremely fast folding machines sold in two versions: PFF - Pile Feeder Folder and CFF - Continuous Feed Folder. Both models have three folding plates as standard expandable to four per unit and up to three units in series (cross and / or parallel). The program ifold is reachable throught the touch screeen control panel. ifold has 30 pre-programmed folds but also allows the operator to program new jobs in a smooth way. Among the options you can find second and third foldig station (pic. 3), remote control, paper jam detector, various delivery stackers and much more.
Contact us for a quote and more information.
- Flexible configuration
- Smooth operation via touch screen
- Expandable with additional folding units for cross and / or tandem folding
- Specifications

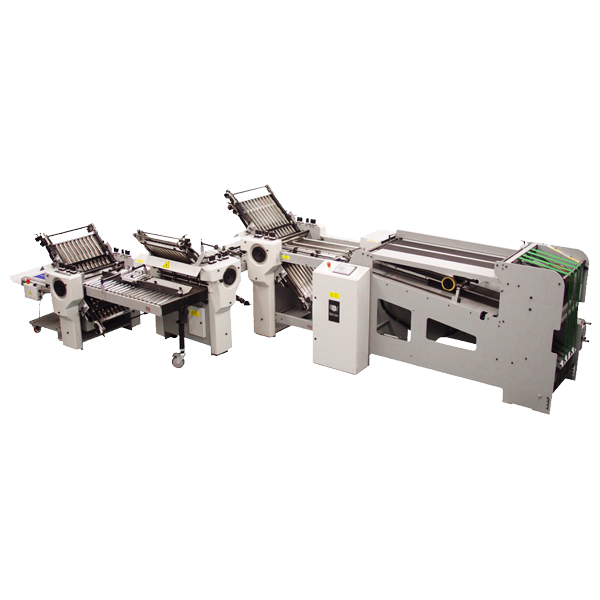

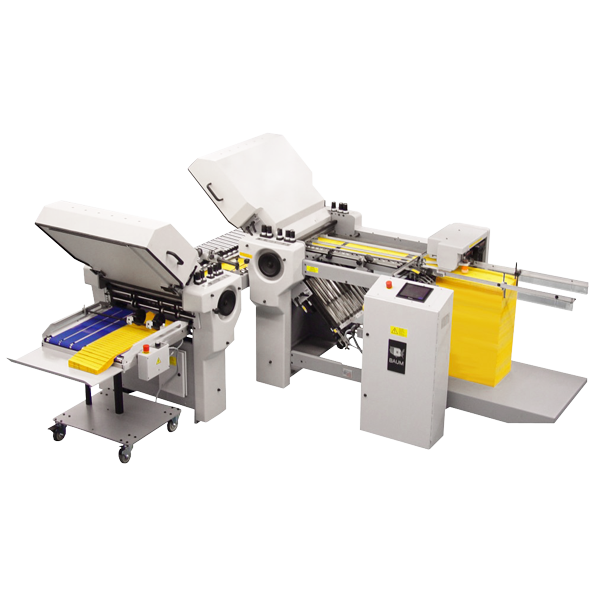

| MODEL | 20 PFF (Pic. 1)* | 20 CFF (Pic. 2)* |
|---|---|---|
| Sheet Feeding | air | air |
| Folding Plates | 3** | 3** |
| Min. Paper Weight (g/m²) | 80 | 80 |
| Max. Paper Size (mm) | 521 x 839 | 521 x 839 |
| Min. Paper Size (mm) | 102 x 153 | 102 x 153 |
| Min. Folding Lenght (mm) | 38 | 38 |
| Max. Speed (m/min) | 208,3 | 208,3 |
| Programs (qty) | 80 job memory storage + 30 pre-programmed folds | |
| Control | 7" touch screen | 7" touch screen |
| Net Weight (kg) *** | 928 | 1207 |
| Dimensions WxD (mm) *** | 1150 x 3000 | 1150 x 3790 |
| Power | 3-ph | 3-ph |
| Warranty (yrs) | 1 | 1 |
* The machine in the picture has additional equipment.
** Fourth folding plate is an option.
*** Refers to the standard version.
