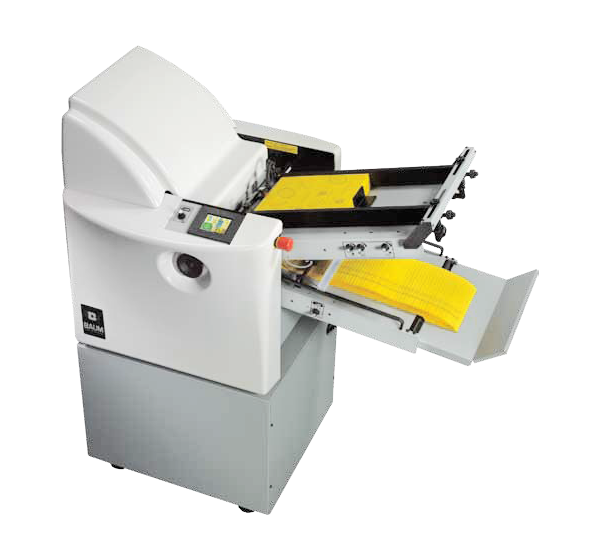

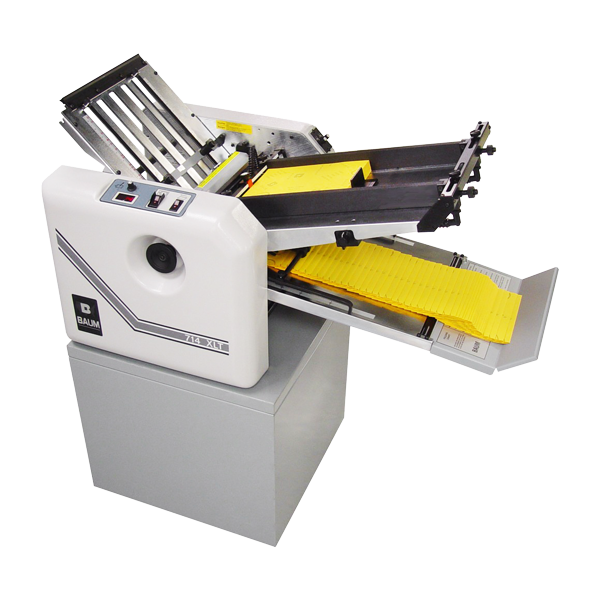

Baum Air Fold
Description
Extremely fast suction fed folding machines. Two folding plates for seven different folding types and sound covers for more silent production.
- A variety of adjustment controls for smoother operation
- Can be connected with another unit for cross or tandem folding
- Specifications
| MODEL | 714XLT | 714XA |
|---|---|---|
| Sheet Feeding | air | air |
| Folding Plates (qty) | 2 | 2 |
| Paper Weight (g/m²) | 60-180 | 60-200 |
| Max. Sheet Size (mm) | 355x508 | 355x647 |
| Min. Sheet Size (mm) | 76x127 | 76x127 |
| Max. Speed (A4 sheet/h) | 35 000 | 30 000 |
| Programs (qty) | - | 20 |
| Control | LCD | touch screen |
| Net Weight(kg) | 141 | 182 |
| Dimensions LxWxH (mm) | 690x1250x620 | 750x1420x810 |
| Power | 1-ph/1500W | 1-ph/2200W |
| Warranty (yrs) | 1 | 1 |
For further information, see attachments below.
Files and media
 | Appendix 714XLT |
| Appendix 714XA |
 | Baum 714XLT |
