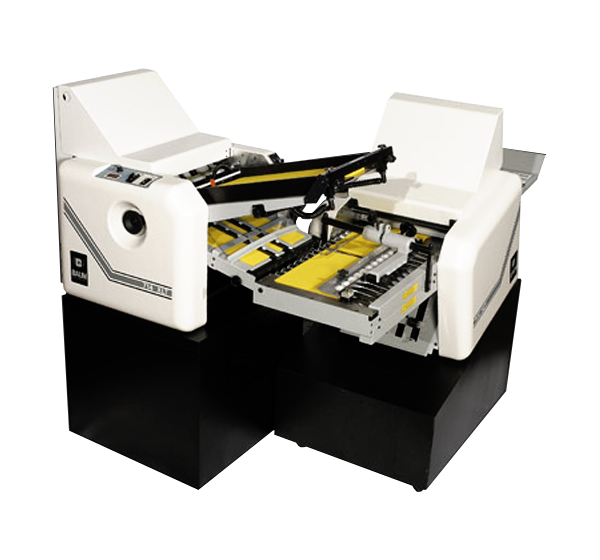

Baum Cross Fold
Description
Extremely fast suction fed folding machines for cross and tandem folding. Four folding plates. Redused noice during production due to sound covers.
- A variety of adjustment controls for smoother operation
- Trundles for perforation as standard
- Specifications
| MODEL | Cross 714XLT | Cross 714XA |
|---|---|---|
| Sheet Feeding | air | air |
| Folding Plates (qty) | 4 | 4 |
| Paper Weight (g/m²) | 60-180 | 60-200 |
| Max. Sheet Size (mm) | 355x508 (317) | 355x647 (317) |
| Min. Sheet Size (mm) | 76x127 | 76x127 |
| Max. Speed (A4 sheet/h) | 36 000 | 30 000 |
| Programs (qty) | - | 20 |
| Control | LCD | touch screen |
| Net Weight (kg) | 282 | 323 |
| Dimensions LxWxH (cm) | 131x187x69 | 138x204x81 |
| Power | 1-ph/1500W | 1-ph/2200W |
| Warranty (yrs) | 1 | 1 |
For further information, see attachments below.
