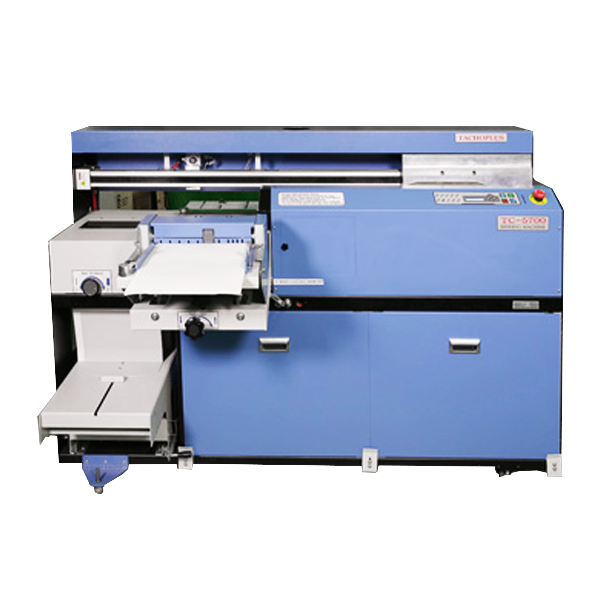

TachoPlus TC-5700
Description
Perfect binder for medium-size production runs. Automatic cover feeding. With side glue.
- Easy to operate
- Automatic binding process
- Milling and 3 side glue application (side glue)
- Adjustable glue application
- Delivered with Planamelt R hot glue
- Specifications
| Model: | TC-5700 |
|---|---|
| Feeding pages | Manual |
| Cover feeding | Automatic |
| Binding process | Automatic |
| Glue Rollers | 3 |
| Glue Sides | 3 |
| Max. Binding Length (mm) | 315 |
| Max. Width Spine (mm) | 50 |
| Max. Thickness Cover (gsm) | 300 |
| Max. Output (books/h) | 300 |
| Dimensions LxWxH (mm) | 1840x1040x1200 |
| Net Weight (kg) | 450 |
| Power | 1-ph/3800W |
| Warranty (yrs) | 1 |
For more information, see attachments below.
Files and media
 | Data sheet |
 | TC-5700 |
