Sky Laminator W380S/W720S
Description
A series of faster versions of roll laminators from SKY DSB with high performance and a variety of smart functions. Designed for high speed single- and double-sided hot lamination. Lamination widths 350-720 mm.
- Stable construction with top-quality components
- Heating roller monitored by an IR sensor which grants a constant and even temperature.
- Works with 3 different roll core dimensions
- Control panel with LCD display
- Specifications

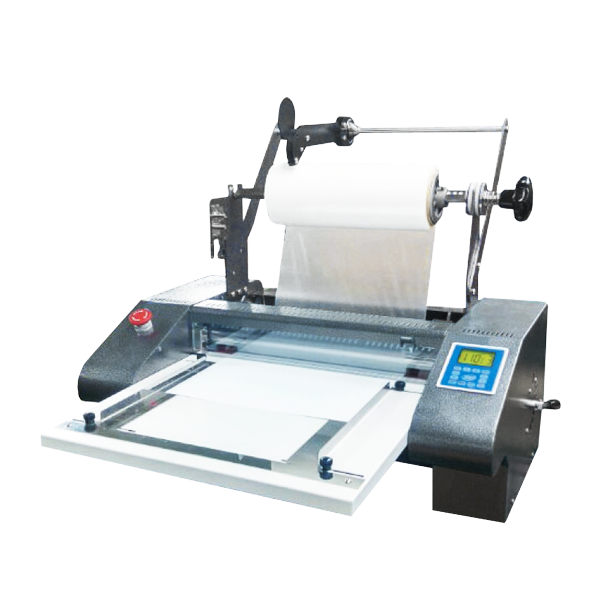

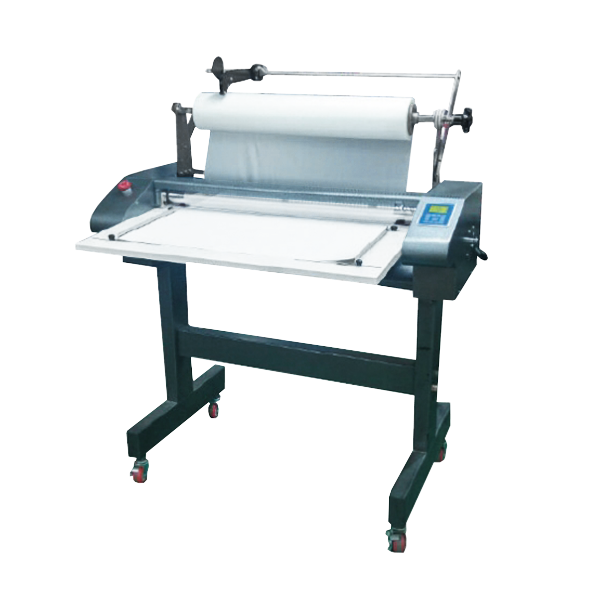

| MODEL | W380S (pic. 2) | W720S (pic. 1) |
|---|---|---|
| Lamination | Hot | Hot |
| Pre-heating Time (min) | 8 | 8 |
| Stand | - | Yes |
| Foot Switch | - | - |
| Display | 1 x LCD | 1 x LCD |
| Max. Temperature (°C) | 150 | 150 |
| Max. Laminating Thickness (mm) | 13 | 13 |
| Max. Laminating Width (mm) | 350 | 720 |
| Max. Speed (m/min) | 6 | 5 |
| Rollers (qty) | 4 | 4 |
| Dimensions WxDxH (mm) | 700 x 460 x 272 | 1040 x 460 x 272 |
| Net Weight (kg) | 55 | 80 |
| Connection (type) | 1-fas / 220-240V / 50-60Hz | 1-fas / 220-240V / 50-60Hz |
For more information, see attachment below.
