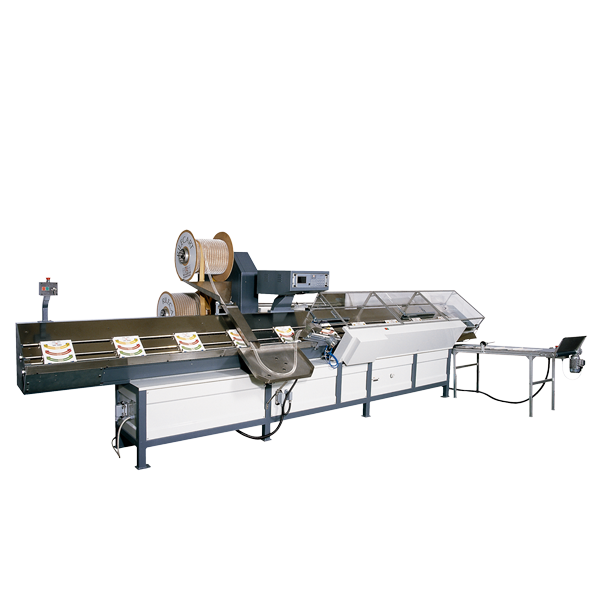

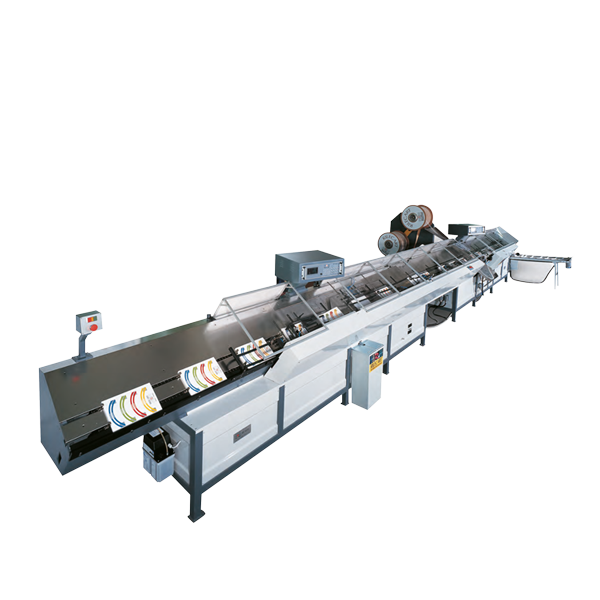

Rilecart Wire System B-599 HF/DP-4500
Description
The fastest fully automatic binding machine on the market. Can process book, pads, exercise books, diaries and many other products with double loop wire. Thanks to its wire rotation tunnel the paper is carried in the simplest way ever and this technology together with the particular wire feeding system allows the B-599 to achieve a very high productivity.
- Sold with or without integrated punching station (DP-4500)
- Binds up to 4000 books/h
- Can be equipped with a hanger feeder integrated with hanger former
- Specifications
| Model: | B-599 HF/DP-4500 |
|---|---|
| Binding Capacity (sheets) | 230 |
| Max. Binding Length (mm) | 450 |
| Wire Dimensions (inch) | 1/4 - 1 |
| Net Weight (kg) | <3500 |
| Dimensions WxDxH (mm) | 9500 x 3600 x 2000 |
| Power | 3-ph/<12000W |
| Warranty (yrs) | 1 |
For more information, see attachments below.
Files and media
 | Data sheet B-599 HF |
| Data sheet DP-4500 |
