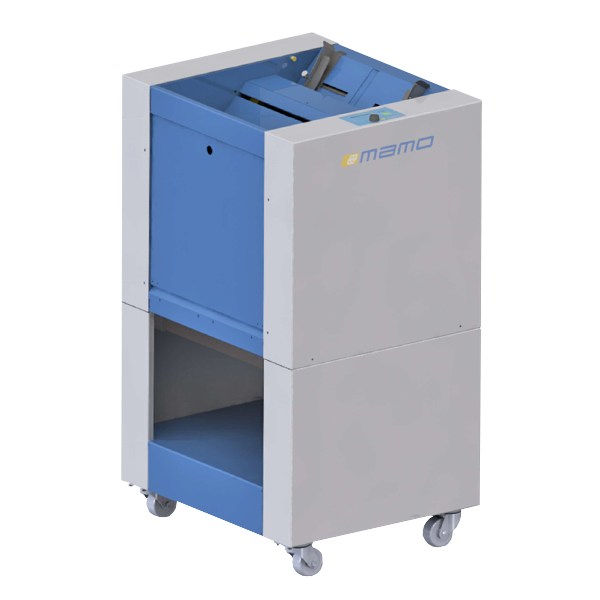

Mamo SQ320 Booklet Maker
Description
Heavy duty folding and stitching machine with square back system. Binds up to landscape A4 in feeding length.
- User friendly and flexible
- Square back with five levels
- Up to four stapling heads (two standard)
- Staple centering adjustment mechanism
- Folds and stitches up to 30 sheets (70gsm)
- Specifications
| Model: | SQ320 |
|---|---|
| Feeding | semi-automatic |
| Capacity (70gsm sheets) | 30 |
| Output (booklets/h) * | 480 / 290 |
| Staples (load) | 500 |
| Staples (sizes) | 26/6 26/8 |
| Max. Sheet Size (mm) | 320 x 612 |
| Min. Sheet Size (mm) | 140 x 160 |
| Counter | Yes |
| Dimensions WxDxH (mm) | 610 x 520 x 1010 ** |
| Net Weight (kg) | 60 |
| Power | 1-ph / 170W |
| Warranty (yrs) | 1 |
* Without/With Square Back.
** Height incl. stand.
For more information, see attachment below.
Files and media
 | Data sheet |
 | Product video |
