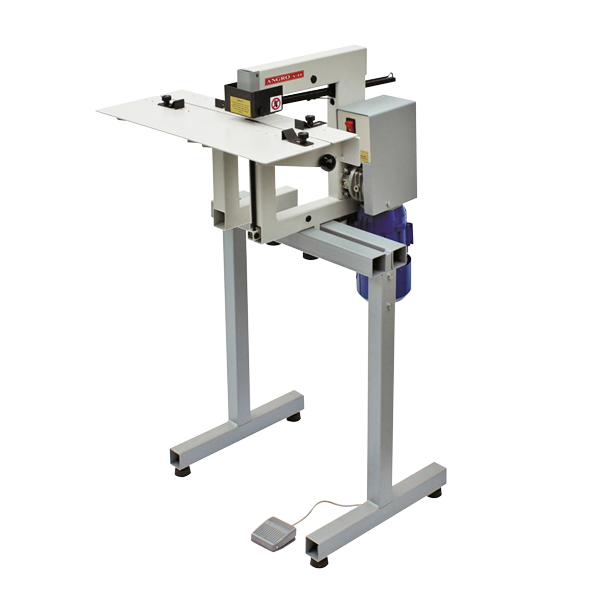

Grafcut Stapler X14
Description
Flexible and powerful machine for block and saddle stitching. 1-4 adjustable staple heads. High capacity both for block and booklets. Works well with larger formats due to the great insertion depth.
- Foot pedal for more efficient production
- Easy front loading of staples

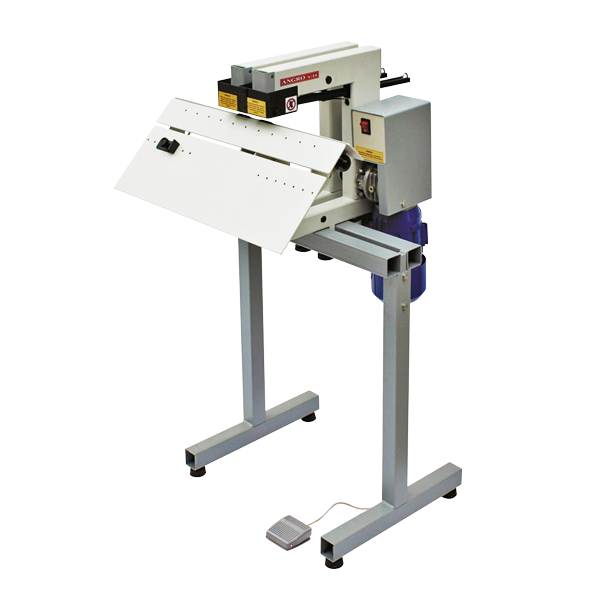

- Rotatable table for adjusting to block or saddle booklet
- Two different versions, 5 and 10 mm stapling capacity
- Available with 1-4 adjustable staple heads
- Long and wide arms for saddle stapling up to A3-format (open size A2)
- Staples also with loopstaples (up to 5 mm thickness)
- For this model we recommend Nagel staples, see related item below. Also note that staple size 24/6 are available in the colors black and white.
- Specifications
| Model: | X14-5 | X14-10** |
|---|---|---|
| Machine (type) | electrical | electrical |
| Operation (type) | foot pedal | foot pedal |
| Stapling capacity* (mm / number of sheets) | 5 / 50 | 10 / 100 |
| Max paper size saddle stapling (mm / format) | 596 / A2 | 596 / A2 |
| Staple heads (numer) | 1-4 | 1-2 |
| Staple heads, adjustable distance (mm) | 48-245 | 48-245 |
| Staple cassette (max number) | 300 | 300-400** |
| Staples flat (type) | 24/6, 24/8 | 24/6, 24/8, 24/10s, 24/13s |
| Staples with loop (type) | Ri24/6, Ri24/8 | Ri24/6, Ri24/8 |
| Net weight (kg) | 28-34 | 28-30 |
| Machine dimensions LxWxH (mm) | 535x540x930 | 535x540x930 |
| Connection (type) | 1-phase/180W | 1-phase/180W |
| Warranty (year) | 1 | 1 |
* The maximum number of sheets varies depending on the weight and the type of paper. Hard pressed paper types can also affect the machine's maximum stapling capacity.
** Model X14-10 comes with two staple cassettes per staple head and requires a shift when stapling above / below 5 mm stack height. The cassette for up to 5 mm handles staple length 6-8 mm and the cassette for 5-10 mm handles staple length 10-13 mm.
