PlastGrommet Media Lifter - Compact
Description
Media lifters from PlastGrommet for large format printers to avoid work injuries and to easily load media rolls into the printer. The Compact series is adapted for rolls up to appr. 100-300 kg.
- Compactly built and easy to maneuver for small spaces
- Manual models with hydraulic foot pedal for quick lifts
- Automatic/Battery models with easy lift by up/down controls
- Battery models has built-in charger
- Load heavy media rolls directly from the ground to the printer with no effort, see data sheet
- Lock ramps to secure rolls (see pictures)

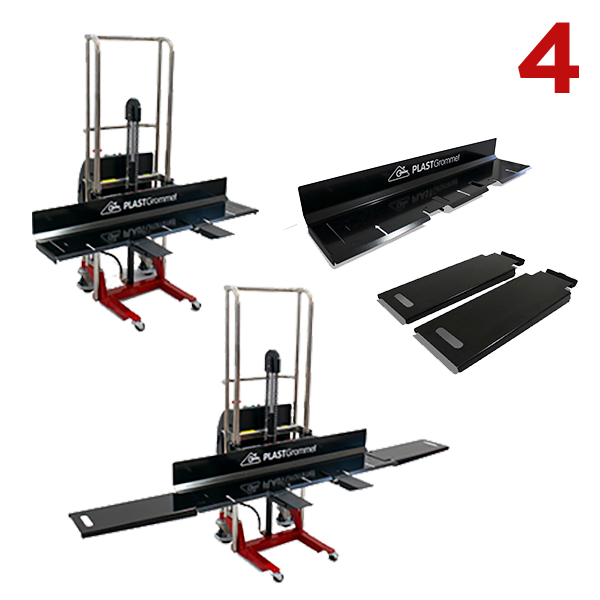

- To Compact Lifter (1) and Compact e-Lifter Pro (3) there are support tray and extensions for the very longest and heaviest rolls, 140 and 250 cm, see pic. 4.
- Multi directional wheels with breaks and low height
- Compact

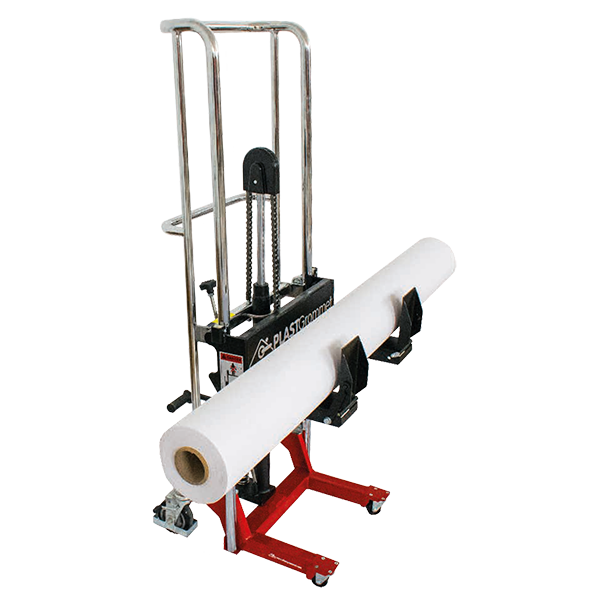

| MODEL | Compact Lifter (pic. 1) |

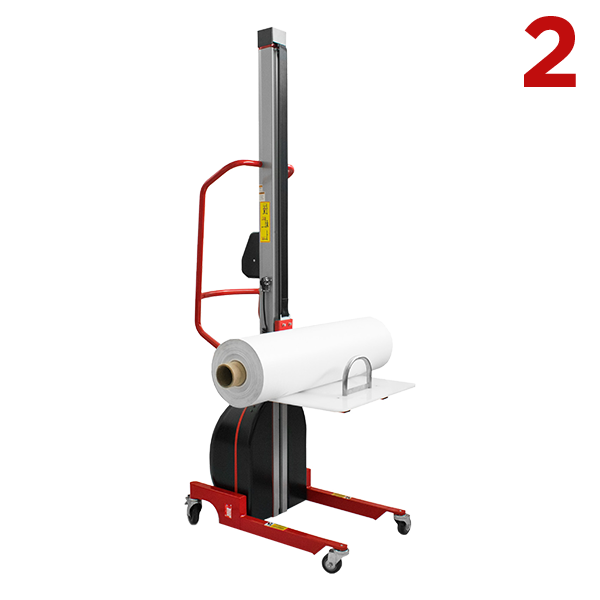

Compact e-Lifter Lite (pic. 2) |

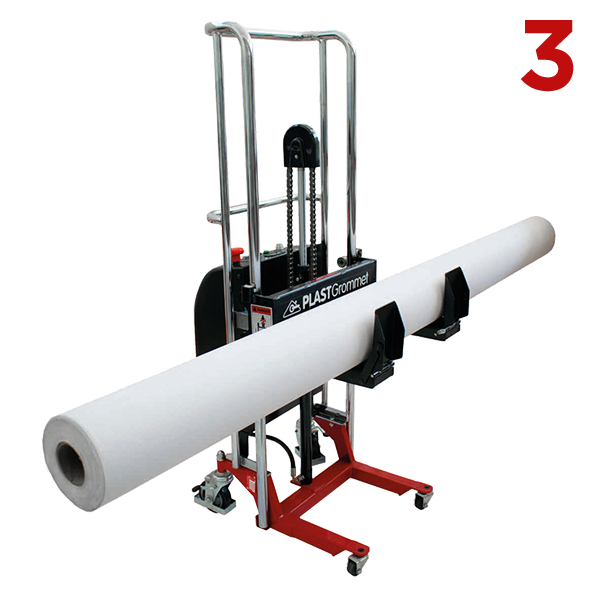

Compact e-Lifter Pro (pic. 3) |
|---|---|---|---|
| Operating | Manual (foot pedal) |
Automatic (battery) |
Automatic (battery) |
| Loading capacity (kg) | 200 | 100 | 300 |
| Max. roll length (cm) | 500 | 320 | 500 |
| Max. roll diameter (Ø cm) |
26 | 40 | 30 |
| Max. lift height (cm) | 125 | 135 | 130 |
| Wheel height (cm) | 8 | 12 | 8 |
| Battery capacity (cycles) | - | 72 | 54 |
| Dimensions LxWxH (cm) |
70x61x161 | 86x61x180 | 81x61x161 |
| Weight (kg) | 70 | 60 | 107 |
For more information, see attachments below.
