PlastGrommet Media Lifter - JumboMAX
Description
Media lifters from PlastGrommet for large format printers to avoid work injuries and to easily load media rolls into the printer. The JumboMAX series is adapted for the biggest rolls up to appr. 1000 kg.
- Manual models with hydraulic foot pedal for quick lifts

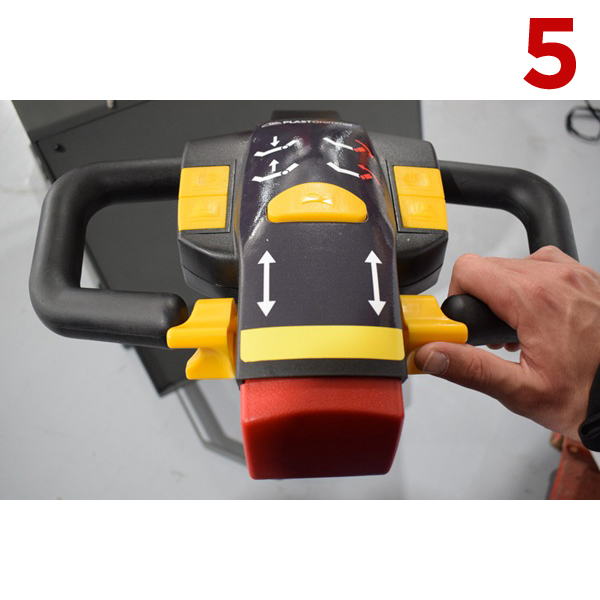

- Automatic/Battery models with easy lift by up/down controls
- Battery models has built-in charger
- Load heavy media rolls directly from the ground to the printer with no effort, see data sheet
- Nylon straps to secure rolls (see pictures)
- Multi directional wheels with breaks and low height
- RollMAX

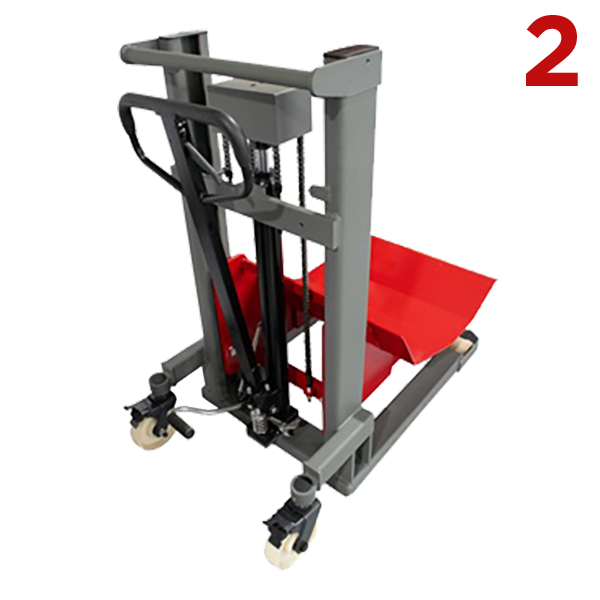

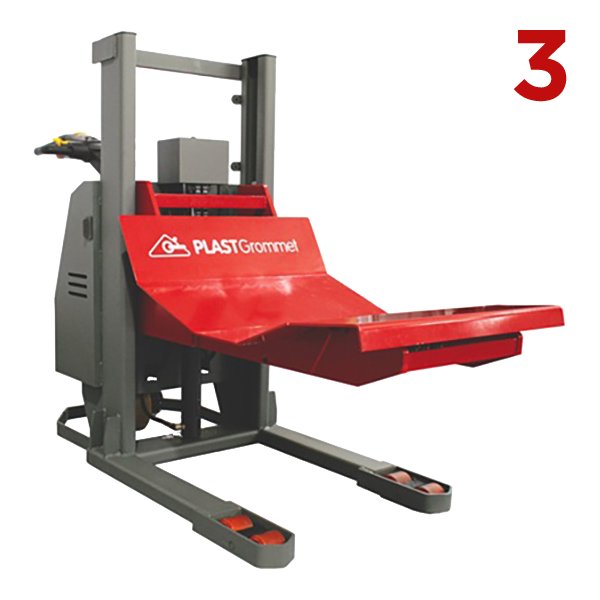

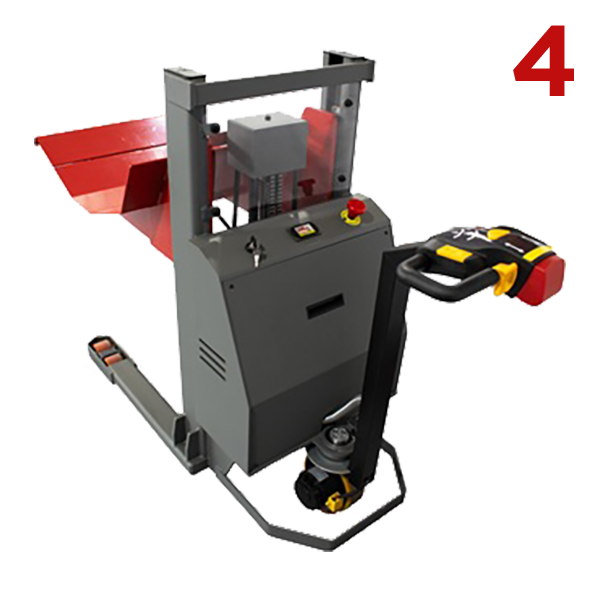

| MODEL | RollMax Lifter (pic. 1) | RollMax e-Lifter (pic. 2) |
|---|---|---|
| Operating | Manual (foot pedal) | Automatic (battery) |
| Loading capacity (kg) | 450 | 450 |
| Max. roll length (cm) | 500 | 500 |
| Max. roll diameter (Ø cm) | 50 | 50 |
| Max. lift height (cm) | 138 | 138 |
| Wheel height (cm) | 8 | 12 |
| Battery capacity (cycles) | - | 54 |
| Dimensions LxWxH (cm) | 120x77x156 | 120x90x156 |
| Weight (kg) | 138 | 166 |
For more information, see attachments below.
